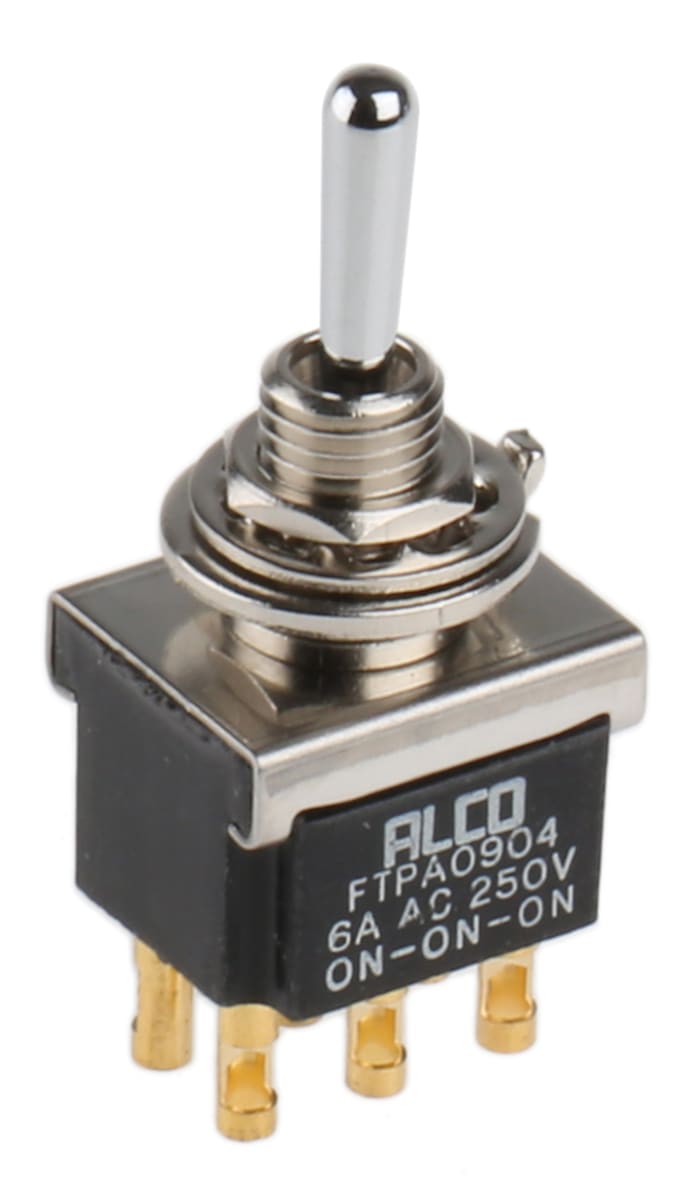

TE Connectivity Toggle Switch, Panel Mount, On-On-On, 4PDT, Solder Terminal
Technical Document
Specifications
Brand
TE ConnectivityContact Configuration
4PDT
Switch Operation
On-On-On
Contact Current Rating
6 A @ 250 V ac
Mounting Type
Panel Mount
Terminal Type
Solder
Actuator Length
10.5mm
Contact Material
Fine Silver
Contact Resistance
0.01Ω
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +80°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+80°C
Product details
Toggle Switches, Min, Professional
Slow make-and-break action
Chrome-plated lever
Solder bucket terminals
A waterproof cover stock no. 321-212 is available (see accessories)
Silver contacts apart from stock nos. 317-077 317-106 317-099 317-112 317-128 and 317-083 which have gold contacts
0.4VA max load
Glass Filled Polyester case
