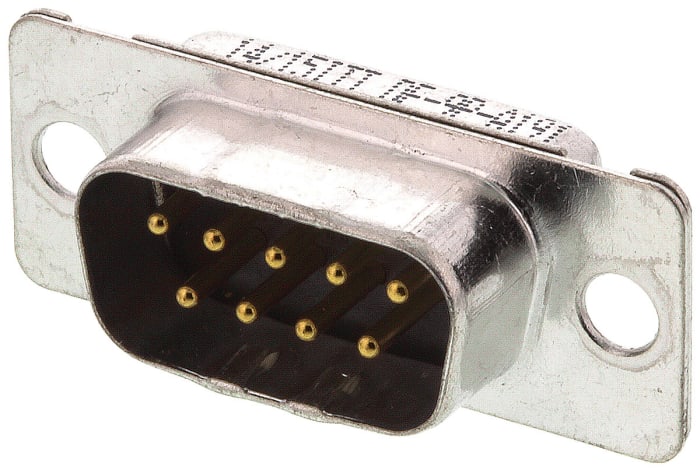

Amphenol Communications Solutions SD 9 Way Panel Mount D-sub Connector Plug
Technical Document
Specifications
Brand
Amphenol ICCNumber Of Contacts
9
Gender
Male
Body Orientation
Straight
Mounting Type
Panel Mount
D Connector Type
Standard D-Sub
D-Sub Shell Size
E
Termination Method
Solder
Current Rating
5.0A
Housing Material
Steel
Length
30.84mm
Width
12.55mm
Depth
15.3mm
Series
SD
Dimensions
30.84 x 12.55 x 15.3mm
Contact Plating
Gold
Contact Material
Brass
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+105°C
Country of Origin
China
Product details
Plug Right Angle MIL Footprint – Rear Inserts
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
₹ 94.54
Each (Exc. GST)
₹ 111.56
Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 94.54
Each (Exc. GST)
₹ 111.56
Each (inc. GST)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | ₹ 94.54 |
| 25 - 49 | ₹ 63.26 |
| 50 - 99 | ₹ 61.99 |
| 100 - 199 | ₹ 57.65 |
| 200+ | ₹ 56.93 |
