Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 4 Pairs, 0.25 mm², 305 m, Grey Sheath Polyvinyl
Technical Document
Specifications
Brand
Alpha WireNumber of Pairs
4
Product Type
Data Cable
Cross Sectional Area
0.25 mm²
Cable Length
305m
Jacket Colour
Grey
Minimum Operating Temperature
-20°C
Jacket Material
Polyvinyl Chloride
Maximum Operating Temperature
80°C
Standards/Approvals
CA Prop 65, CE, CSA - cUL TYPE CM, EU Directive 2011/65/EU (ROHS II), /REACH Regulation, UL AWM 2919 VW-1, UL CM, UL VW-1
Fire Behaviour
VW-1
Conductor Material
Tin Copper Wire
Series
Alpha Essentials Communication & Control
Product details

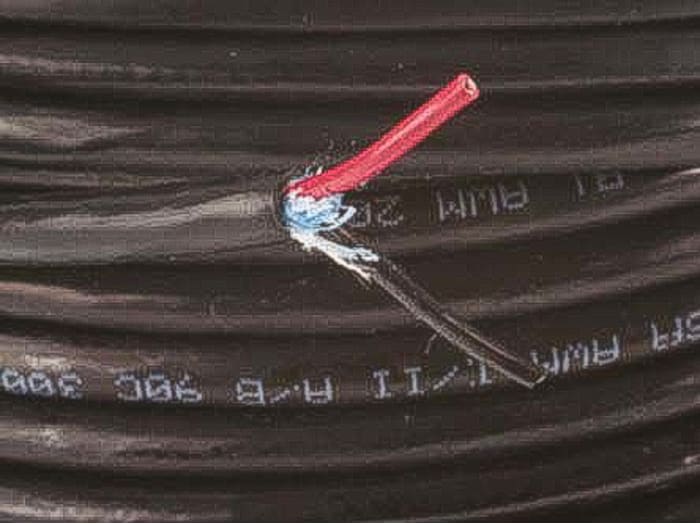

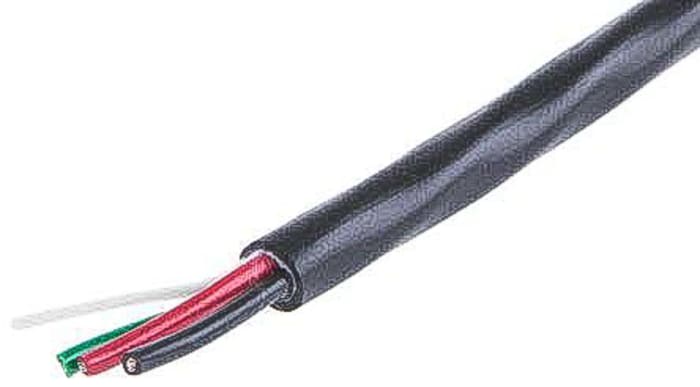

Foil Shielded Multi-pair
The Alpha Wire foil shielded multi-pair cable contains 24 AWG stranded tinned copper wire conductors; the foil shield is made of aluminium/mylar tape facing inwards. The low capacitance of this cable improves transmission and signal integrity.
Features and benefits
Foil shield offers good high-frequency shielding
Stranded tinned copper conductors improve flexibility
PVC insulation provides good resistance to abrasion, chemicals, and water
Flame Retardant to rating FT4
Applications
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Approvals
UL Recognised, CSA
Stock information temporarily unavailable.
₹ 294,107.43
₹ 294,107.43 1 Reel of 305 Metres (Exc. GST)
₹ 347,046.77
₹ 347,046.77 1 Reel of 305 Metres (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 294,107.43
₹ 294,107.43 1 Reel of 305 Metres (Exc. GST)
₹ 347,046.77
₹ 347,046.77 1 Reel of 305 Metres (inc. GST)
Stock information temporarily unavailable.
1
