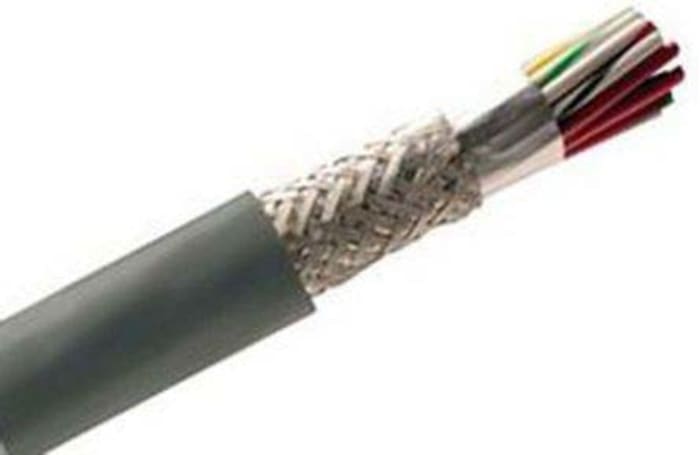

Alpha Wire Alpha Essentials Communication & Control Control Cable, 50 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath,
Technical Document
Specifications
Brand
Alpha WireSeries
Alpha Essentials Communication & Control
Number of Cores
50
Cross Sectional Area
0.23 mm²
American Wire Gauge
24 AWG
Conductor Material
Tinned Copper
Sheath Material
PVC
Sheath Colour
Grey
Screen Type
Foil
Screened/Unscreened
Screened
Minimum Bend Radius
10 x Diameter
Outer Diameter
10.85mm
Length
30m
Voltage Rating
300 V
Standards Met
CE, CSA, UL
Maximum Operating Temperature
+80°C
Core Strands
7/0.2 mm
Drain Wire
Yes
Conductor Resistance
26 Ω/1000ft
Minimum Operating Temperature
-20°C
Insulation material
PVC
Product details
300V Foil Shield Multi-conductor Cable
The foil shielded multi-conductor cable can be used where EMI levels are moderate. They offer good high frequency shielding.
Features and Benefits
• Stranded tinned copper conductors
• Aluminium/polyester foil shield offers additional strength and insulation
• PVC insulation
• Overall flame retardant PVC jacket
Approvals
ULAWM 2576 (150 V), VW-1, UL CM, CSA FT4
Stock information temporarily unavailable.
₹ 78,555.59
₹ 78,555.59 1 Reel of 30 Metres (Exc. GST)
₹ 92,695.60
₹ 92,695.60 1 Reel of 30 Metres (inc. GST)
