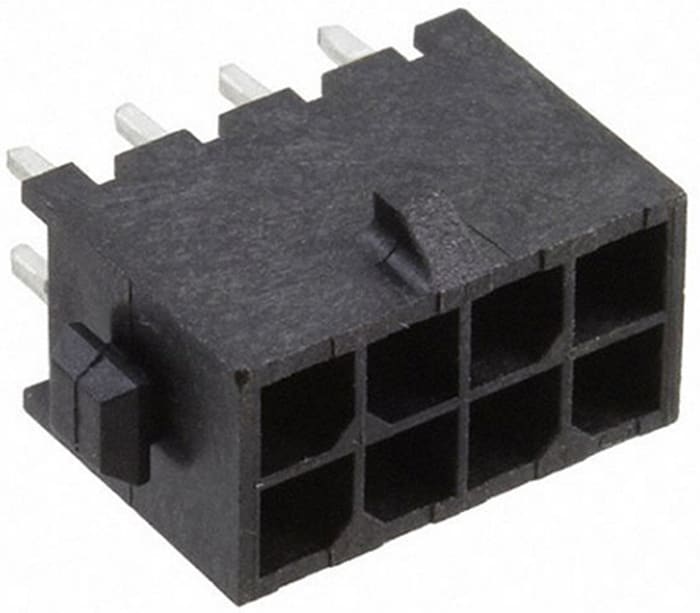

Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header, 8 Contact(s), 3.0mm Pitch, 2 Row(s), Shrouded
Technical Document
Specifications
Brand
Wurth ElektronikSeries
WR-MPC3
Pitch
3.0mm
Number Of Contacts
8
Number Of Rows
2
Body Orientation
Straight
Shrouded/Unshrouded
Shrouded
Mounting Type
Through Hole
Connector System
Wire to Board
Termination Method
Solder
Contact Material
Copper Alloy
Current Rating
5.0A
Voltage Rating
250.0 V
Product details
WR-MPC3 3.0mm Dual Row SMT Vertical Mount Male Header Connector with SMT Solder Tabs
WR-MPC3 dual row vertical SMT mount shrouded male header connectors with a 3.0mm pitch and SMT solder tabs. These WR-MPC3 3.0mm dual row vertical header connectors have a black UL94-V0 PA9T insulator, tin plated copper alloy stamped contacts and mate with WR-MPC3 female dual row receptacle style connector housings.
3.0mm Wurth WR-MPC3 Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₹ 10,713.60
₹ 119.04 Each (In a Tray of 90) (Exc. GST)
₹ 12,642.05
₹ 140.467 Each (In a Tray of 90) (inc. GST)
90
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 10,713.60
₹ 119.04 Each (In a Tray of 90) (Exc. GST)
₹ 12,642.05
₹ 140.467 Each (In a Tray of 90) (inc. GST)
Stock information temporarily unavailable.
90
Stock information temporarily unavailable.
