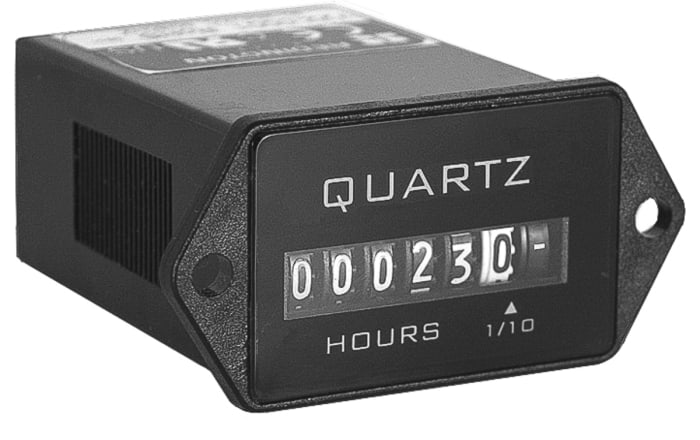

Trumeter 722 Hour Meter, 6 Digit Analogue, 50Hz, 90 → 264 V ac
Technical Document
Specifications
Brand
TrumeterSupply Voltage
90 → 264 V ac
Count Mode
Hours
Display Type
Analogue
Function
Hour Meter
Input Type
Voltage
Connection Type
Spade Terminal
Reset Method
No Reset
Number Of Digits
6
Mounting Type
Flush Mount
Output / Interface
Voltage
Digit Height
3.6 mm
Maximum Count Frequency
50 Hz, 60Hz
Cutout Size
36.8 x 24.1 mm
Measurement Range
0 → 99999.9h
Minimum Operating Temperature
-40°C
Minimum Measurement
0h
Meter Accuracy
±0.02%
Cutout Height
24.1mm
Series
722
Cutout Width
36.8mm
Depth
48mm
Meter Type
Electromechanical
Approvals
12 Compliant, CE, cUL, NEMA 4x, RoHS Compliant, SAE, UL
Country of Origin
India
Product details
Trumeter 722 Series Hour Meters
The 722 series of Hour Meters have an operating range of 9-264V ac 50/60Hz. Models are available in the standard industry housings and are quartz time based to ensure accurate long-term time keeping. The totally sealed cases of these Hour Meters protects against the environment and provides years of reliable service.
6 Figures 3.6mm high
Operating voltage 90-264V ac
Totally sealed
Non-reset
Clip or mounting holes
Quartz accuracy
Minimum 36 second on-time for event capture
NEMA 4x rated
