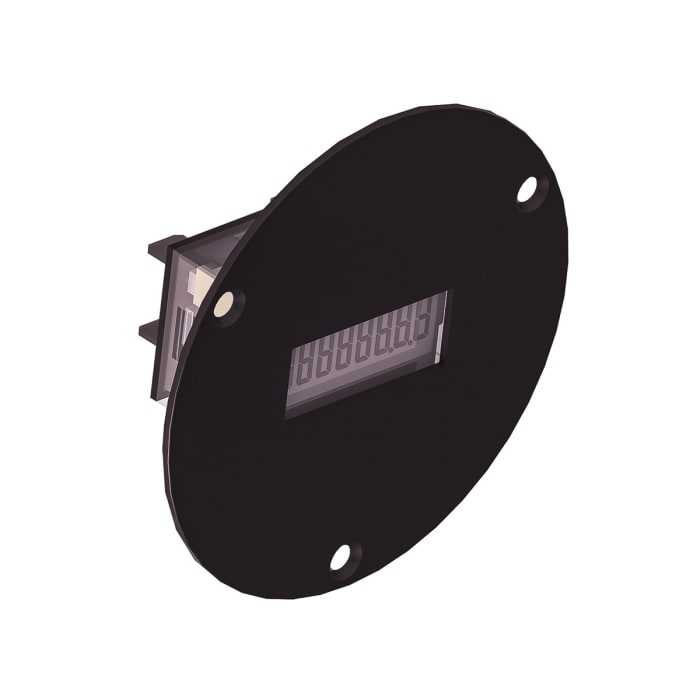

Trumeter 3410 Hour Meter, 8 Digit LCD, 50Hz, 10 → 300 V dc, 20 → 300 V ac
Technical Document
Specifications
Brand
TrumeterSupply Voltage
10 → 300 V dc, 20 → 300 V ac
Count Mode
Hours
Display Type
LCD
Function
Hour Meter
Input Type
Voltage
Connection Type
Spade Terminal
Reset Method
No Reset
Number Of Digits
8
Mounting Type
Flush Mount
Output / Interface
MOSFET
Count Direction
Bi-Directional
Digit Height
7 mm
Maximum Count Frequency
50 Hz, 60Hz
Cutout Size
36.8 x 24.1 mm
Minimum Measurement
0h
Meter Accuracy
± 0.1 (Room Temperature) %, ± 0.2 (Specified Temperature Range) %
Cutout Height
24.1mm
Series
3410
Cutout Width
36.8mm
Depth
19mm
Meter Type
Electronic
Approvals
CE, cUL Recognized (File # ELIY2.E36690), NEMA 4, NEMA 4x, RoHS Compliant, SAE, UL, WEEE
Measurement Range
0 → 999999.99 h, 0 → 9999999.9h
Minimum Operating Temperature
-40°C
Country of Origin
Malaysia
Product details
Trumeter 3410 Series Hour Meters
The 3410 Series provides a large display, with 7mm high characters, in industry standard housings. All models are totally sealed and capable of submersion in 2 metres of water. The hour meters accept a wide operating voltage of 10-300VDC and 20-300VAC. All models are IP66 (NEMA 4/4X, 12) rated when used with the gasket ( for some stock numbers, please order gaskets separately ) and have a polarized lens which assures high visibility in an outdoor environment.
8 digit LCD display
7mm high characters
Totally sealed from moisture and dirt
AC or DC voltage input in the same unit
Compact depth
Fits in existing panel openings
Always on display
Choice of 5 housings
Choice of reset modes
Self-powered
15+ year battery life
Note
849-4646 is 2-hole panel mount, non-reset
849-4655 is a 2-hole panel mount, with remote reset
849-4658 is a rectangular flush mount, with remote reset
849-4652 is a round SAE flush mount, with remote reset
882-6948 is a 3-hole panel mount, non-reset
882-6942 is a rectangular flush mount, non-reset
882-6951 is a round SAE flush mount, non-reset
