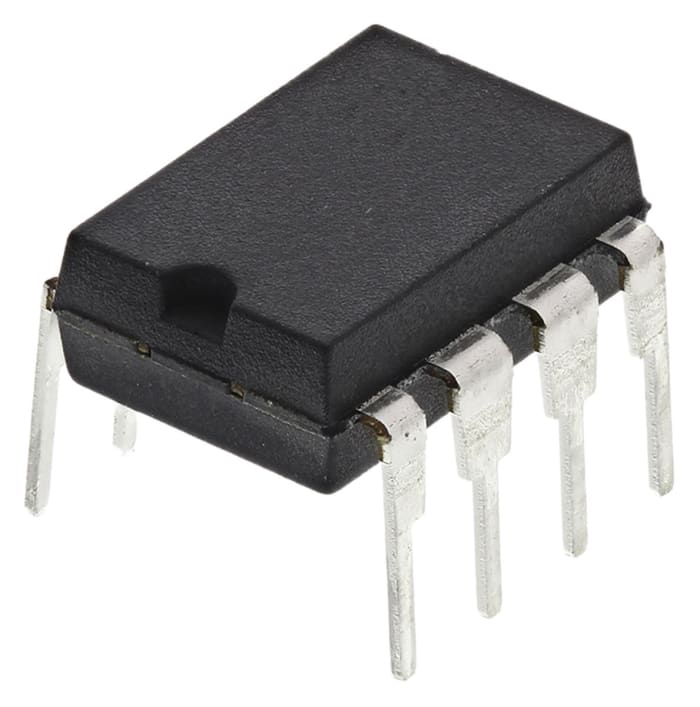

OPA241PA Texas Instruments, Precision, Op Amp, 35kHz, 3 → 28 V, 8-Pin PDIP
Technical Document
Specifications
Brand
Texas InstrumentsAmplifier Type
Precision
Mounting Type
Through Hole
Package Type
PDIP
Power Supply Type
Dual, Single
Number of Channels per Chip
1
Pin Count
8
Typical Single Supply Voltage
3 → 28 V
Typical Gain Bandwidth Product
35kHz
Typical Dual Supply Voltage
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate
0.01V/µs
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Rail to Rail
No
Typical Voltage Gain
120 dB
Typical Input Voltage Noise Density
45nV/√Hz
Height
4.57mm
Dimensions
9.81 x 6.35 x 4.57mm
Length
9.81mm
Width
6.35mm
Product details
Low Power Op Amps, OPA Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₹ 484.39
₹ 484.39 Each (Exc. GST)
₹ 571.58
₹ 571.58 Each (inc. GST)
Standard
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 484.39
₹ 484.39 Each (Exc. GST)
₹ 571.58
₹ 571.58 Each (inc. GST)
Stock information temporarily unavailable.
