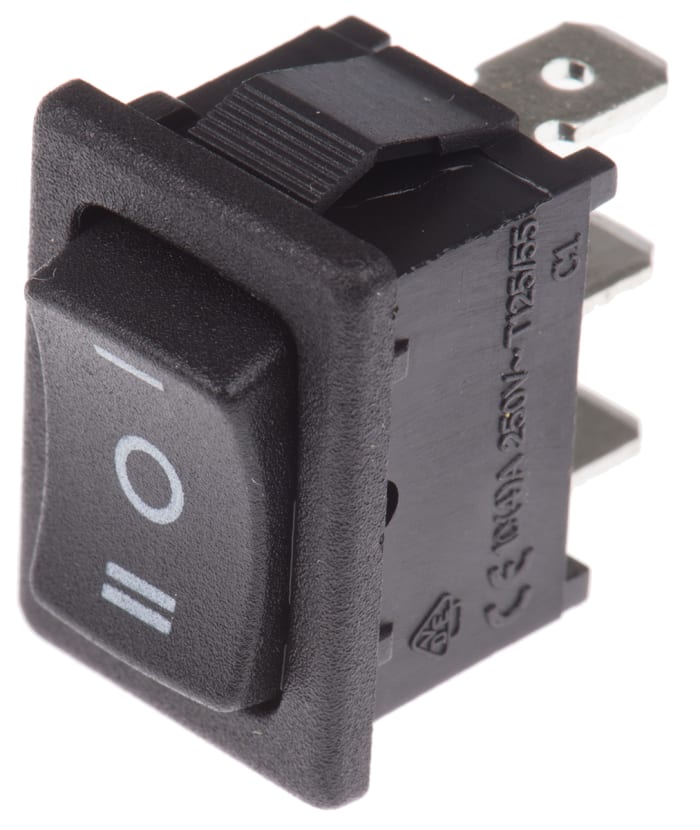

TE Connectivity SPDT, On-Off-On Rocker Switch Panel Mount

RS Stock No.: 718-2244Brand: TE ConnectivityManufacturers Part No.: PRASD3-16F-BB000
brand-logo
View all in Rocker Switches

Technical Document

Specifications

Brand

TE Connectivity

Contact Configuration

SPDT

Switch Operation

On-Off-On

Panel Cut Out Width

19.2mm

Panel Cut Out Height

13mm

Contact Current Rating

16 A

Actuator Colour

Black

Mounting Type

Panel Mount

Terminal Type

Quick Connect

Legend Text

I O II

DC Voltage Rating

12 V, 28V

Panel Cut Out Size

13 x 19.2mm

AC Voltage Rating

125 V, 250V

Actuator Shape

Rectangular

Minimum Operating Temperature

-20°C

Operating Temperature Range

-20 → +85°C

Mechanical Life

100000Operations

Contact Resistance

100mΩ

Case Material

Nylon 66

Contact Material

Silver Tin Oxide

Maximum Operating Temperature

+85°C

Product details

PRAS Series

PRAS Series power rockers from Tyco Electronics

Snap-in mounting
13.0 x 19.2mm Panel Cut-out

Tyco Series
