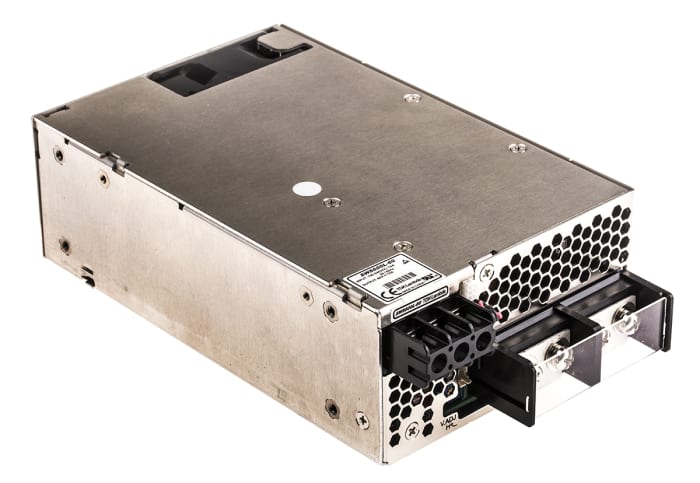

TDK-Lambda Switching Power Supply, SWS1000L-60 60V dc, 17A, 1 kW, Input 85V ac to 350 V dc, 265V ac
Technical Document
Specifications
Brand
TDK-LambdaProduct Type
Switching Power Supply
Maximum Output Voltage
60V dc
Number of Outputs
1
Mount Type
Chassis
Power
1kW
Minimum Operating Temperature
-20°C
SMPS Output Current
17A
Maximum Operating Temperature
74°C
Depth
2.4in
Length
9.45in
Weight
2.3kg
Standards/Approvals
CE, EN 55011, EN 55022-B, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, FCC Class B, IEC/UL/CSA/EN 62368-1, VCCI-B
Width
2.4in
Efficiency
90%
Series
SWS1000L
Maximum Input Voltage
350, 265V dc
Output Current
17A
Hazardous Area Certification
No
Minimum Input Voltage
85V ac
Product details
600 to 1000W, Universal Input, Single Output, SWSL Series
Low profile
Quiet temperature controlled fan
Wide operating temperature range
Active power factor correction meets EN61000-3-2 Class A
Over current/voltage/temperature protection
Remote sense
Conducted and radiated EMI - EN55011 / EN55022-B, FCC Class B
Medical Approvals (SWS1000L)
Approvals
UL, CSA
Standards
EN 60950-1, EN50178, EN 60601-1 & UL60601-1 (1000W only), IEC61010-1 (600W only)
Switch Mode - TDK-Lambda
