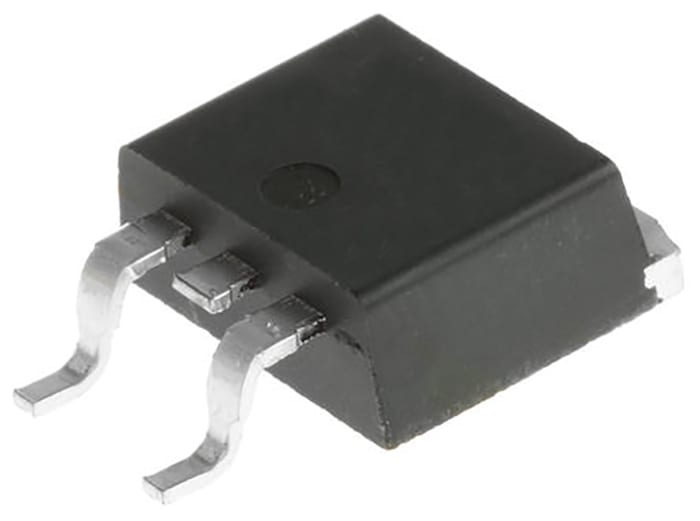

STMicroelectronics MDmesh Type N-Channel MOSFET, 17 A, 650 V Enhancement, 3-Pin TO-263

RS Stock No.: 760-9499PBrand: STMicroelectronicsManufacturers Part No.: STB24NM60N
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

17A

Maximum Drain Source Voltage Vds

650V

Package Type

TO-263

Series

MDmesh

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

190mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

125W

Maximum Gate Source Voltage Vgs

30 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

46nC

Forward Voltage Vf

1.6V

Maximum Operating Temperature

150°C

Width

10.4 mm

Height

4.6mm

Length

10.75mm

Standards/Approvals

No

Automotive Standard

No

Product details

N-Channel MDmesh™, 600V/650V, STMicroelectronics

MOSFET Transistors, STMicroelectronics
