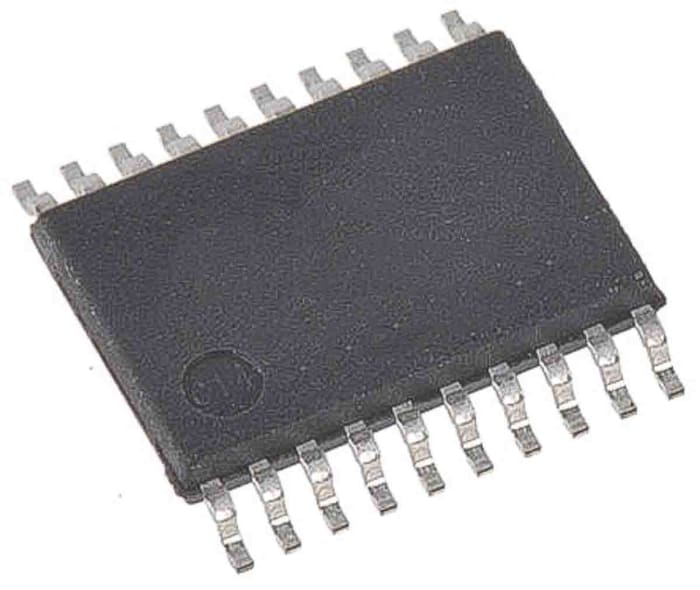

STMicroelectronics 2-Channel Line Transceiver, CMOS/TTL, 20-Pin TSSOP

RS Stock No.: 189-1862Brand: STMicroelectronicsManufacturers Part No.: ST3222BTR
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

STMicroelectronics

Logic Family

CMOS/TTL

Product Type

Line Transceiver

Logic Function

Line Transceiver

Number of Channels

2

IC Type

Line Transceiver IC

Input Type

Single Ended

Output Type

CMOS/TTL

Mount Type

Surface

Package Type

TSSOP

Minimum Supply Voltage

3V

Pin Count

20

Maximum Supply Voltage

3.3V

Maximum High Level Output Current

-1mA

Maximum Low Level Output Current

1.6mA

Maximum Propagation Delay Time @ CL

200ns

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

4.48 mm

Height

1.2mm

Length

6.6mm

Standards/Approvals

No

Series

ST3222B

Supply Current

1mA

Automotive Standard

No
