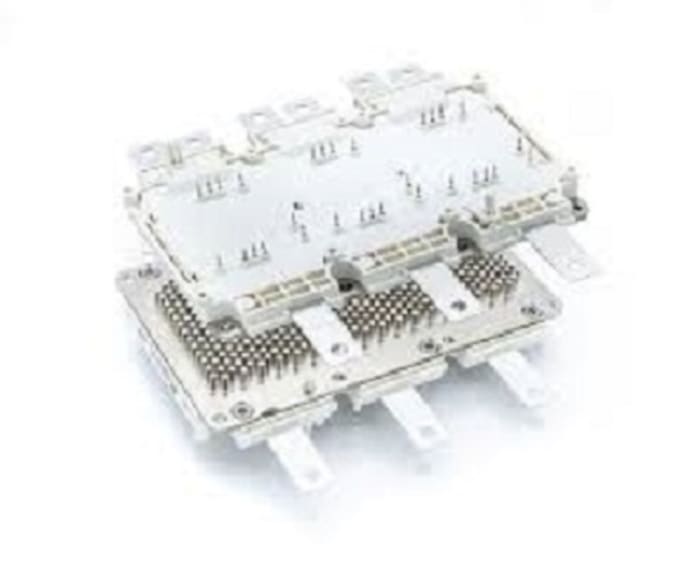

STMicroelectronics 3 Phase A2U Type N-Channel SiC Power Module, 75 A, 1200 V Enhancement, 8-Pin ACEPACK 2

RS Stock No.: 249-6720PBrand: STMicroelectronicsManufacturers Part No.: A2U12M12W2-F2
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

SiC Power Module

Channel Type

Type N

Maximum Continuous Drain Current Id

75A

Maximum Drain Source Voltage Vds

1200V

Package Type

ACEPACK 2

Series

A2U

Mount Type

Chassis

Pin Count

8

Maximum Drain Source Resistance Rds

17mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

298nC

Minimum Operating Temperature

-40°C

Forward Voltage Vf

2.9V

Maximum Operating Temperature

175°C

Transistor Configuration

3 Phase

Standards/Approvals

UL

Automotive Standard

AEC-Q101
