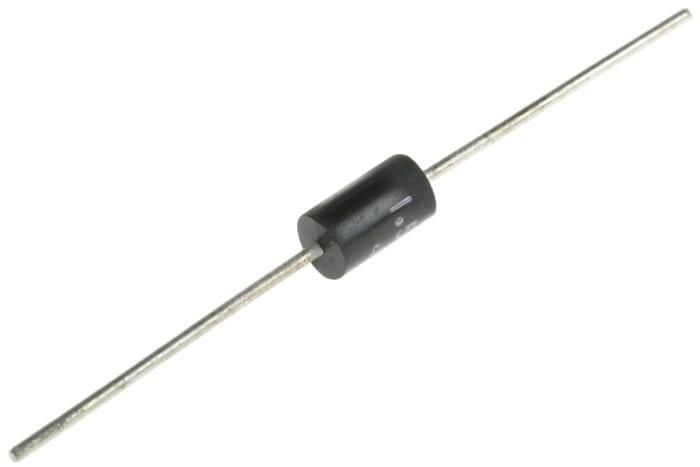

STMicroelectronics 1.5KE33CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-201
Technical Document
Specifications
Brand
STMicroelectronicsDirection Type
Bi-Directional
Diode Configuration
Single
Maximum Clamping Voltage
59V
Minimum Breakdown Voltage
31.4V
Mounting Type
Through Hole
Package Type
DO-201
Maximum Reverse Stand-off Voltage
28.2V
Pin Count
2
Peak Pulse Power Dissipation
1500W
Maximum Peak Pulse Current
169A
Number of Elements per Chip
1
Minimum Operating Temperature
-65 °C
Dimensions
9.5 x 5.3 x 5.3mm
Maximum Operating Temperature
+175 °C
Maximum Reverse Leakage Current
1µA
Height
5.3mm
Test Current
1mA
Length
9.5mm
Width
5.3mm
Product details
Transil™ TVS Axial Bidirectional 1500W, STMicroelectronics
Transient Voltage Suppressors, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
₹ 33.33
Each (In a Pack of 5) (Exc. GST)
₹ 39.329
Each (In a Pack of 5) (inc. GST)
Standard
5
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 33.33
Each (In a Pack of 5) (Exc. GST)
₹ 39.329
Each (In a Pack of 5) (inc. GST)
Standard
5
Buy in bulk
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | ₹ 33.33 | ₹ 166.65 |
| 25 - 45 | ₹ 33.00 | ₹ 165.00 |
| 50 - 120 | ₹ 32.67 | ₹ 163.35 |
| 125 - 245 | ₹ 32.34 | ₹ 161.70 |
| 250+ | ₹ 32.02 | ₹ 160.10 |
