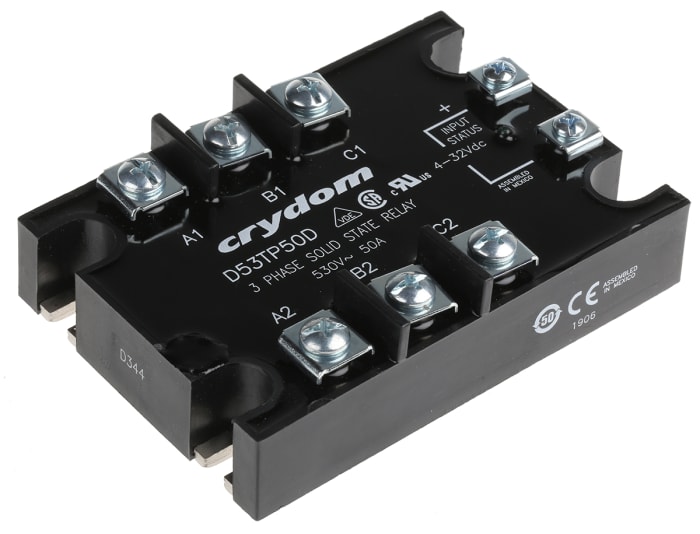

Sensata / Crydom 53TP Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 32V dc Control

RS Stock No.: 720-3928Brand: Sensata / CrydomManufacturers Part No.: D53TP50C
brand-logo
View all in Solid State Relays

Technical Document

Specifications

Brand

Sensata / Crydom

Maximum Load Current

50A

Product Type

Solid State Relay

Mount Type

Panel

Maximum Load Voltage

530V ac

Minimum Load Voltage

48V ac

Minimum Control Voltage

4V dc

Maximum Control Voltage

32V dc

Series

53TP

Terminal Type

Screw

IP Rating

IP20, IP00

Contact Configuration

3PST

Minimum Operating Temperature

-40°C

Switching Function

Instantaneous Switching

Maximum Operating Temperature

80°C

Height

79.7mm

Length

101.3mm

Standards/Approvals

RoHS, cLR, CE

Width

35.4mm

Off State Leakage Current

3mArms

Capacitance

8pF

Output Type

SCR

Country of Origin

Mexico

Product details

Panel Mount - 53TP Series

Three-phase solid-state relay; ratings 25A , 50A per phase at 48-530 Vac
Two package styles IP20 or IP00
SCR output for heavy industrial loads
AC or DC control voltage
Zero-crossing (resistive loads) output
LED input status indicator
Integrated transient protection

Approvals

CE, RoHS

Zero Voltage Relays
