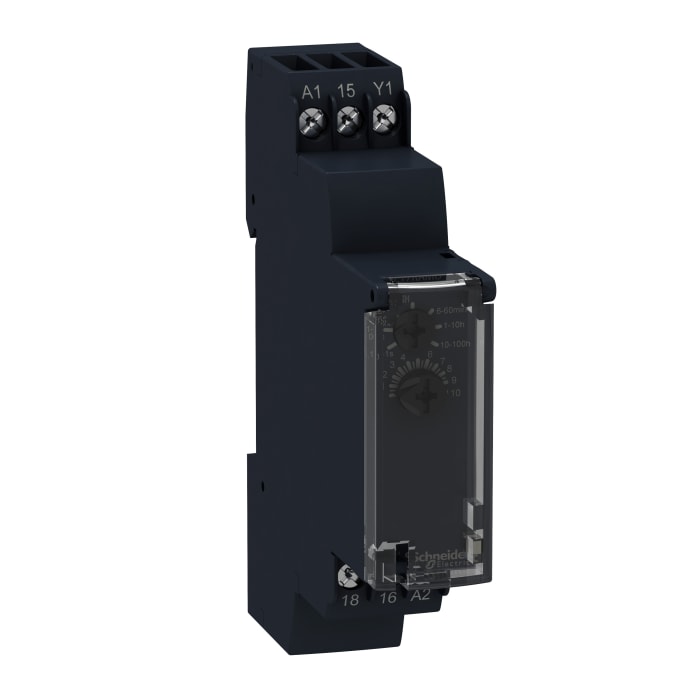

Solid State On Delay Timer 24 - 240 Vac
Technical Document
Specifications
Brand
Schneider ElectricSupply Voltage
24 → 240V ac
Mounting Type
DIN Rail
Time Range
0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100h
Number of Timer Functions
Single
Time Increment
Hours, Minutes, Seconds
Maximum Voltage
250V ac/dc
Terminal Type
Screw
Minimum Voltage
10V dc
Width
17.9mm
Length
81mm
Depth
72mm
Maximum Operating Temperature
+60°C
Time Delay
350ms
Minimum Operating Temperature
-20°C
