Technical Document
Specifications
Brand
RS ProProduct Type
Spade Connector
Termination Type
Crimp
Gender
Male/Female

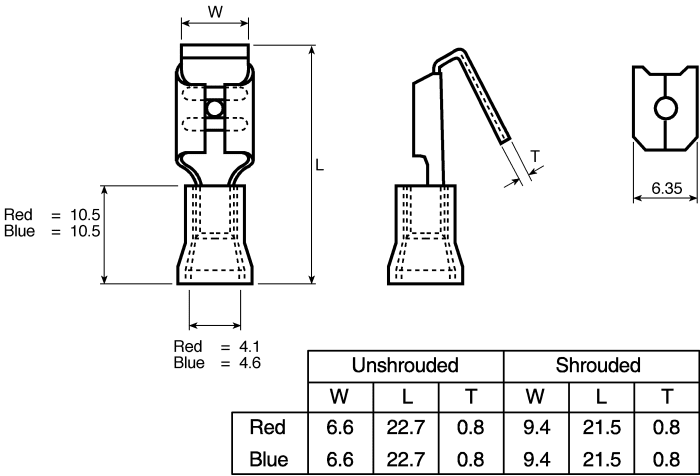

Tab Width
6.3mm
Tab Thickness
0.8mm
Tab Size
6.35 x 0.8 mm
Insulation
Insulated
Minimum Wire Size mm²
0.5mm²
Minimum Wire Size AWG
22AWG
Maximum Wire Size mm²
1.5mm²
Maximum Wire Size AWG
16AWG
Colour
Red
Contact Material
Brass, Copper
Contact Plating
Tin
Orientation
Angled
Insulation Material
Nylon
Standards/Approvals
No
Overall Length
21.5mm
Series
RS PRO
Country of Origin
Taiwan, Province Of China
Product details
A range of fully insulated double crimp piggyback terminals made from brass with a copper sleeved barrel and flared nylon insulation. These shrouded piggyback crimp connectors are colour coded for use with different wire sizes and accept a variety of tab sizes. For suitable crimp tool please see stock number 267-3133
