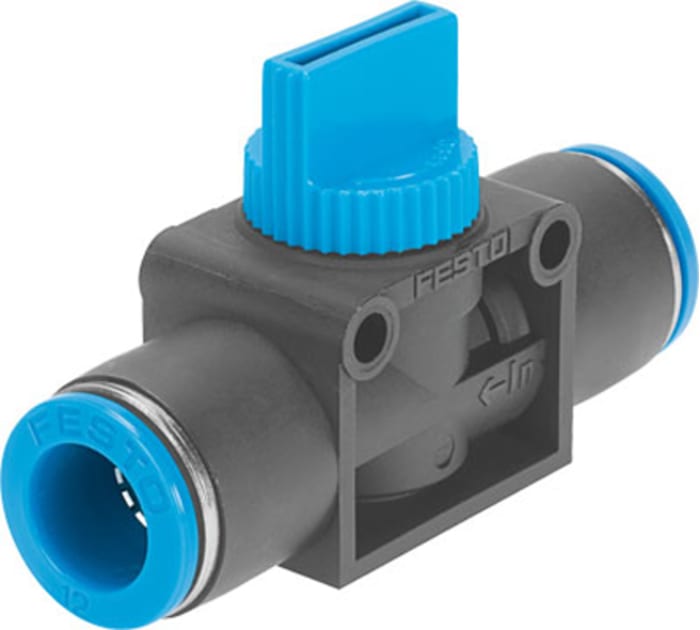

RS PRO Rotary Knob Pneumatic Relay Pneumatic Manual Control Valve HVFF Series, 10mm, III B

RS Stock No.: 916-0971Brand: RS PRO
brand-logo
View all in Pneumatic Manual Control Valves

Technical Document

Specifications

Brand

RS Pro

Control Mechanism

Rotary Knob

Function

Pneumatic Relay

Thread Size

10mm

Manufacturer Series

HVFF

Control Button/Switch Colour

Blue

Maximum Operating Pressure

10 bars

Body Material

Polyoxymethylene

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+60°C

Number of Positions

2

Number of Ports

2

Model Number (p)

III B

Country of Origin

Taiwan, Province Of China

Product details

RS Pro Hand Valves

Features and Benefits

• When off, the 3 way direction control valve discharges the residual pressure and blocks air flow-in
• This product switches air pressure devices air on/off by simply turning the handle
• Maintenance or inspection is possible when the remaining pressure in the device is removed

Specification

• Applicable for use with air
• Working pressure, 0-150 psi
• Negative pressure, -29.5 in Hg
• Working pressure, 32°F to 140°F
• Applicable tube, polyurethane and nylon

Product Application Information

Can be used for turning air pressure on and off in pneumatic devices.

Threaded Tube-to-Tube & Adaptors

The push-on and screw collar design of these fittings makes them secure and suitable for instrumentation, vacuum and general purpose applications, and they can be used with nylon or polyurethane tubing.
