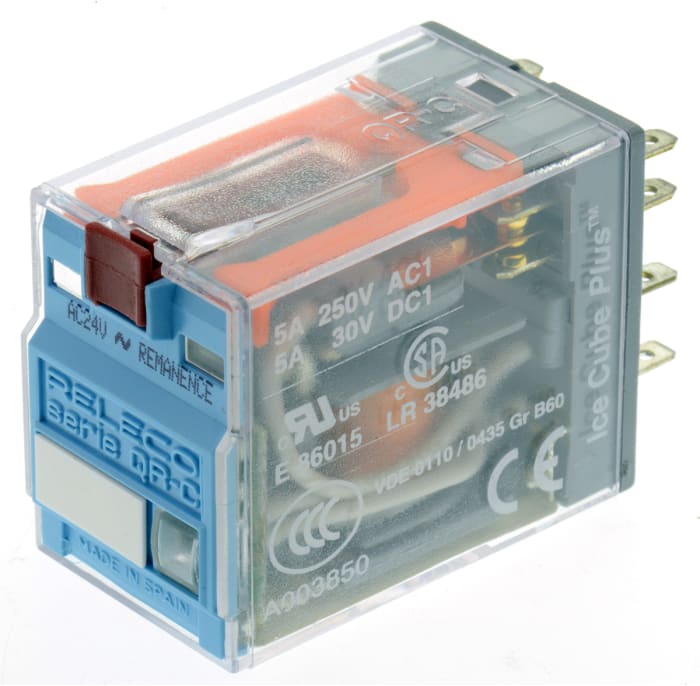

Releco Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT

RS Stock No.: 213-0793Brand: RelecoManufacturers Part No.: C9-R21N
brand-logo
View all in Power Relays

Technical Document

Specifications

Brand

Releco

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

5A

Number of Poles

2

Latching

Yes

Terminal Type

Plug In

Maximum Switching Voltage AC

120V ac

Maximum Switching Voltage (AC)

120V ac

Length

21mm

Coil Resistance

50Ω

Coil Power

1.2W

Depth

28mm

Life

20000000 (Mechanical) cycles

Contact Material

Gold Plated

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+60°C

Isolation Coil To Contact

2.5kV

Height

37.5mm

Maximum Switching Power AC

600 kVA

Dimensions

21 x 37.5 x 28mm

Country of Origin

China

Product details

5A DPCO Latching - C9 Series

Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C.

Contacts remain latched on even after the supply is removed from the 'set' input
Contacts are switched off by pulsing the 'reset' input
Relay socket also available (see stock no. 437-783)
