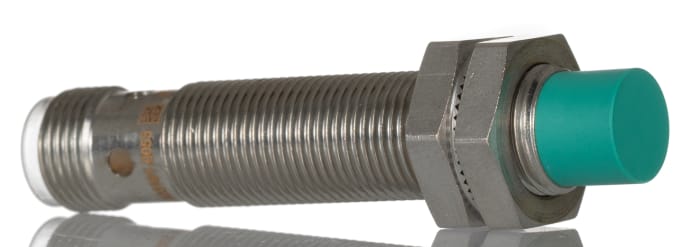

Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 10 → 60 V dc,
Technical Document
Specifications
Brand
Pepperl + FuchsSensor Technology
Inductive
Body Style
Barrel
Thread Size
M12 x 1
Output Type
PNP
Detection Range
8 mm
Terminal Type
4-Pin M12 Connector
Supply Voltage
10 → 60 V dc
IP Rating
IP68, IP69K
Length
65mm
Maximum dc Voltage
60V
Mounting Type
Flush
Switching Current
200 mA
Housing Material
Brass Nickel Plated
Maximum Operating Temperature
+85°C
Shielding
Unshielded
Maximum Switching Frequency
400Hz
Short Circuit Overload Protection
Yes
Minimum Operating Temperature
-40°C
Reverse Polarity Protection
Yes
Country of Origin
Indonesia
Product details
Extended Sensing Range
These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications.
Features and benefits
LED indication
Embeddable or flush installation
IP67
Supply voltage 10 to 30Vdc
Short circuit and reverse polarity protection
Pre-wired types have 2m PVC cable
Plug-in types have M12 type V1 connector
