Panasonic Photoelectric Sensor, 5 mm Detection Range
Technical Document
Specifications
Brand
PanasonicDetection Range
5 mm
Output Type
PNP
Electrical Connection
Cable
Maximum dc Voltage
24V
Terminal Type
Cable
Light Source
Infrared LED
Maximum Current
50 mA
Response Time
20 μs, 100 μs
Minimum Operating Temperature
-25°C
Housing Material
PBT
Maximum Operating Temperature
+55°C
Country of Origin
Korea, Republic Of
Product details

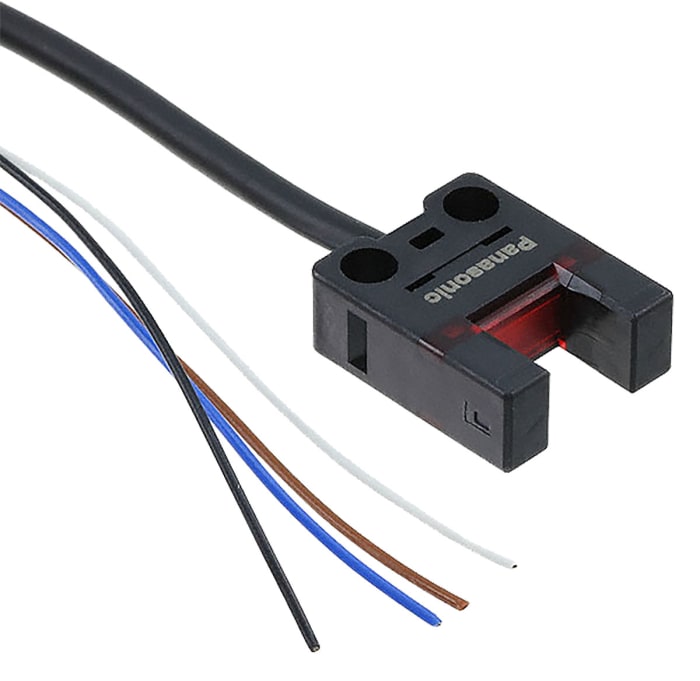

Slotted, Sub-Min Through Beam Proximity Sensors
Slotted through-beam type proximity sensors
Minimum detectible object >1.8mm (non-transparent)
PNP open collector transistor outputs
LED indication of output state
1m of pre-moulded cable or solder terminals
Separate 'light on' and 'dark on' outputs
Repeatability 0.03mm or less
