Technical Document
Specifications
Brand
PanasonicGear Ratio
10:1
Gearbox Type
Spur
Shaft Diameter
12mm
Overall Length
90mm
Overall Width
90mm
Overall Depth
35mm
Power Rating
40 W
Product details

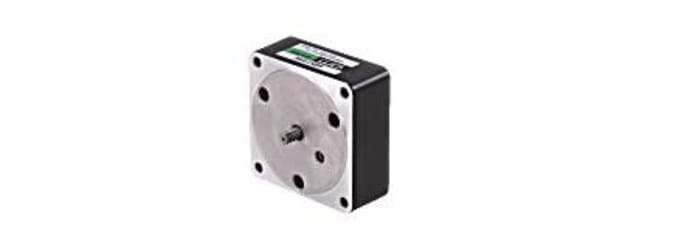

40W 90x90mm Panasonic 3 Series Intermediate Gearboxes
Fitted between a Panasonic 3 Series motor and a gearhead of the same frame size
Provides a further 10:1 speed reduction for a motor-gearhead combination
The output shaft of the intermediate gearhead has a gearscrew output shaft to allow it to engage and drive the attached gearhead
Panasonic 3 Series Motors and Gearboxes
Approvals
UL, CE and CCC
Stock information temporarily unavailable.
Please check again later.
₹ 9,354.38
Each (Exc. GST)
₹ 11,038.17
Each (Including GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 9,354.38
Each (Exc. GST)
₹ 11,038.17
Each (Including GST)
1
