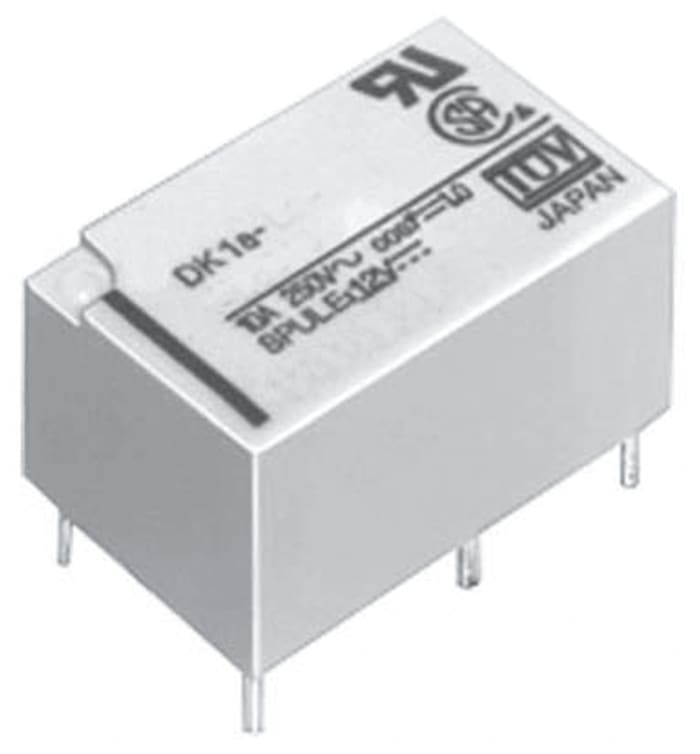

Panasonic Power Relay, 5V dc Coil, 10A Switching Current

RS Stock No.: 871-8226Brand: PanasonicManufacturers Part No.: DK1A-5V-F
brand-logo
View all in Power Relays

Technical Document

Specifications

Brand

Panasonic

Coil Voltage

5V dc

Switching Current

10A

Latching

No

Country of Origin

Thailand

Product details

DK Series Relay

These PCB mount miniature power relays have a high capacity, high sensitivity and high breakdown voltage. A sealed construction allows automatic washing. Typical applications include power switching, industrial machinery, PLC's, temperature controllers, timers and home appliances.

Compact with high capacity
High sensitivity: 200 mW nominal operating power
High surge withstanding, 10,000V between contact and coil
Sealed construction
Miniature size, H10 x W20 x D12.5 mm

Approvals

UL, CSA, TÜV
