Technical Document
Specifications
Brand
onsemiMaximum Output Current
700mA
Regulator Type
Linear Voltage
Output Voltage
5 V
Number of Outputs
1
Line Regulation
50 mV
Load Regulation
100 mV
Mounting Type
Through Hole
Polarity
Positive
Package Type
TO-220
Pin Count
3
Output Type
Fixed
Dimensions
10.28 x 4.82 x 9.28mm
Height
9.28mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Maximum Input Voltage
35 V
Width
4.82mm
Length
10.28mm
Product details

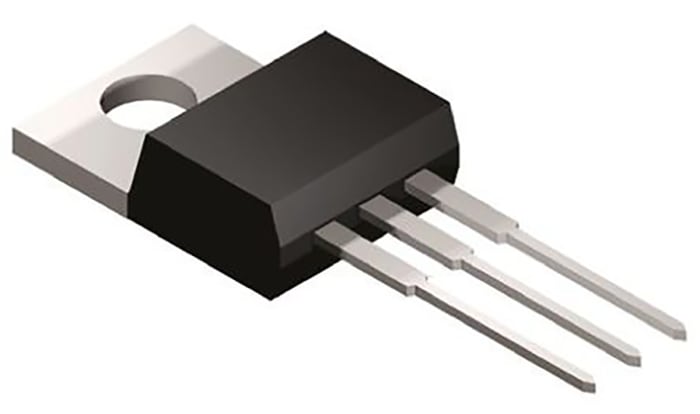

MC78M00/MC78M00A Linear voltage regulator, ON Semiconductor
The ON Semiconductor MC78M00/MC78M00A linear voltage regulator is a robust device that combines Internal current limiting, thermal shutdown and output transistor safe operating area protection. It can be used in many applications including local, on-card voltage regulation. Available in 5 V, 8 V, 12 V, 15 V, 18 V, 20 V and 24 V with an output current of up to 500 mA with used with a suitable heat sink.
Pb Free Packages available
Linear Voltage Regulators, ON Semiconductor
Stock information temporarily unavailable.
Please check again later.
₹ 48.68
Each (In a Tube of 50) (Exc. GST)
₹ 57.442
Each (In a Tube of 50) (Including GST)
50
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 48.68
Each (In a Tube of 50) (Exc. GST)
₹ 57.442
Each (In a Tube of 50) (Including GST)
50
Buy in bulk
quantity | Unit price | Per Tube |
---|---|---|
50 - 50 | ₹ 48.68 | ₹ 2,434.00 |
100 - 950 | ₹ 33.59 | ₹ 1,679.50 |
1000 - 2450 | ₹ 31.59 | ₹ 1,579.50 |
2500 - 9950 | ₹ 30.82 | ₹ 1,541.00 |
10000+ | ₹ 29.73 | ₹ 1,486.50 |
