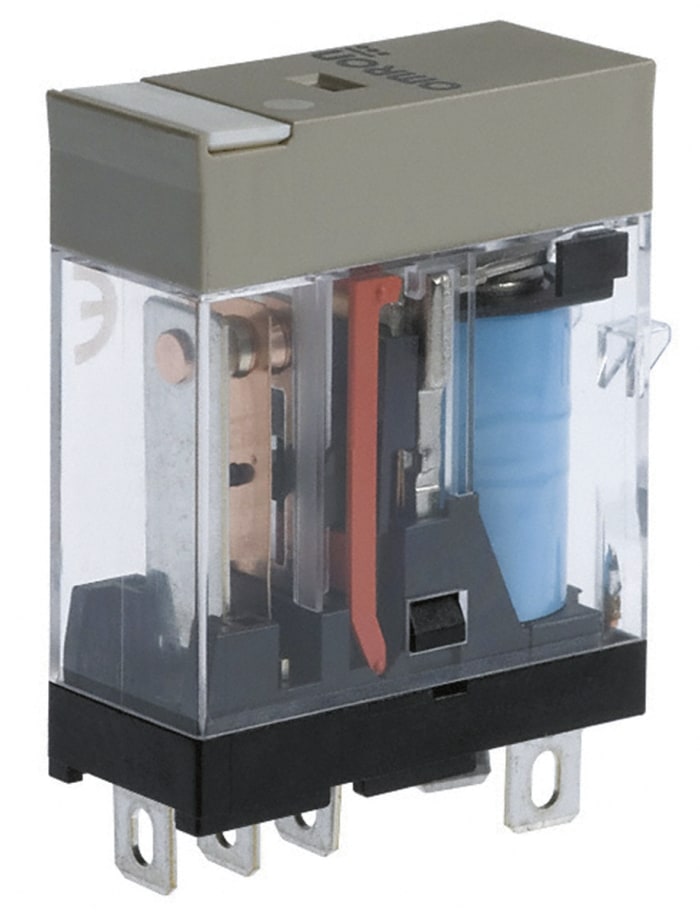

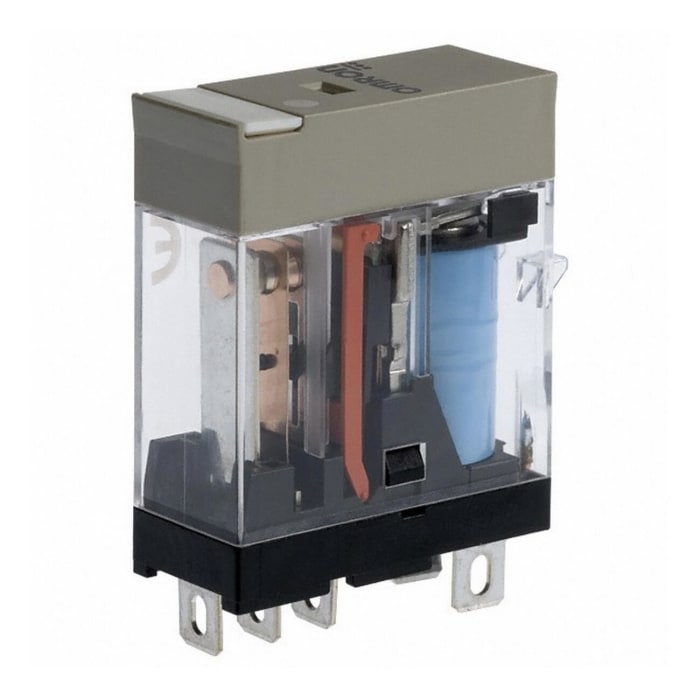

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Technical Document
Specifications
Brand
OmronCoil Voltage
24V dc
Contact Configuration
SPDT
Mounting Type
Plug In
Switching Current
10A
Number of Poles
1
Latching
No
Terminal Type
Plug In
Maximum Switching Voltage AC
380V ac
Maximum Switching Voltage (AC)
380V ac
Maximum Switching Voltage DC
125V dc
Maximum Switching Voltage (DC)
125V dc
Maximum Switching Current DC
10 A
Maximum Switching Current AC
10 A
Maximum Switching Current (DC)
10 A
Maximum Switching Current (AC)
10 A
Length
29mm
Coil Resistance
1100Ω
Coil Power
530mW
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
5kV ac
Minimum Operating Temperature
-40°C
Standards Met
CE, CSA
Series
G2R-1
Depth
13mm
Life
1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
Height
29mm
Contact Material
Silver Alloy
Width
40.5mm
Maximum Switching Power DC
300 W
Maximum Switching Power AC
2.5 kVA
Application
Power
Dimensions
40.5 x 29 x 13mm
Country of Origin
Malaysia
Product details
G2RS Series Non-Latching Relay
Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.
Features & Benefits
Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Product Application Information
Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Approvals
UL, CSA, VDE
