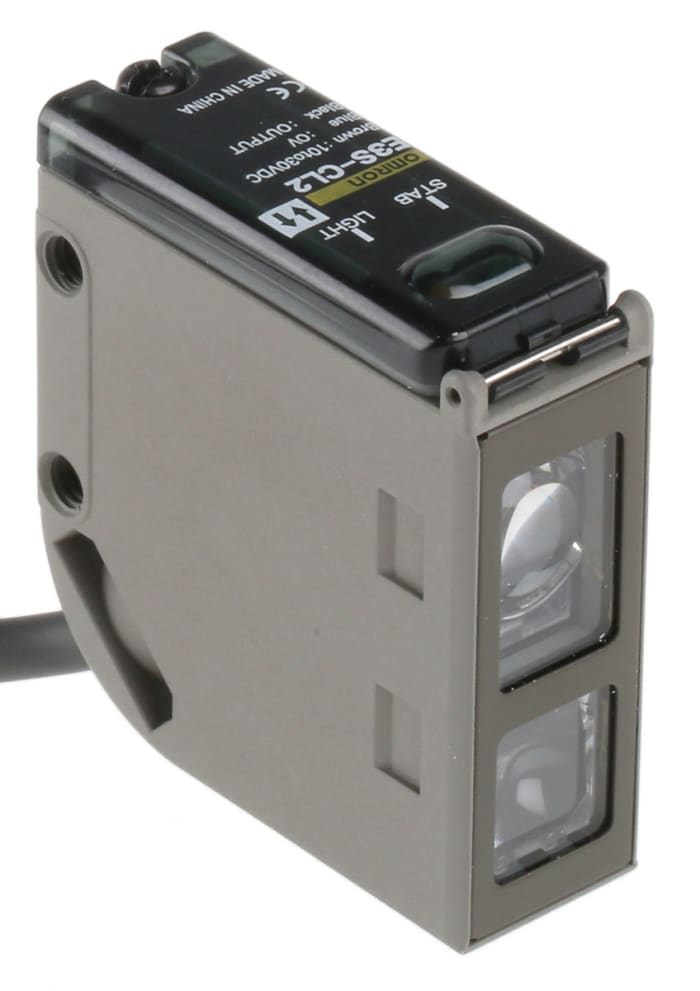

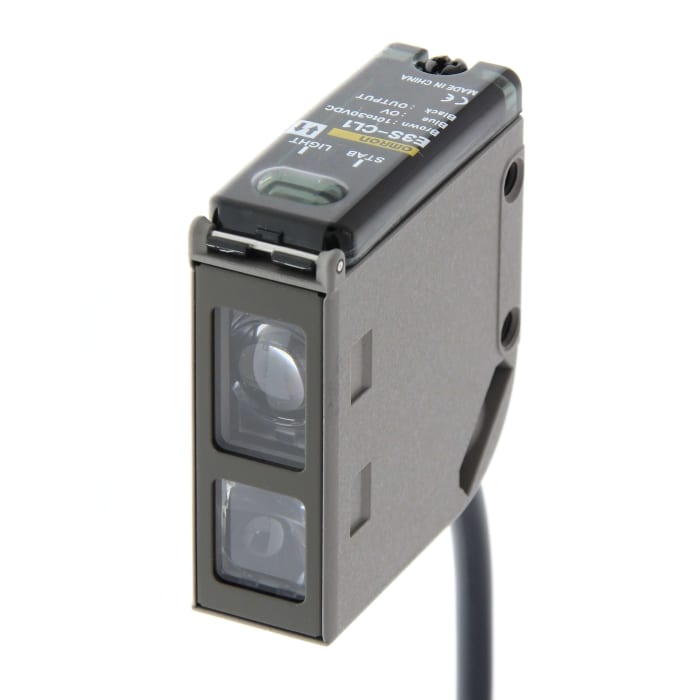

Omron Background Suppression Distance Sensor, Block Sensor
Technical Document
Specifications
Brand
OmronProduct Type
Distance Sensor
Sensor Style
Block
Detection Type
Background Suppression
Output Type
NPN
Maximum DC Voltage
30V dc
Light Source
LED
Minimum Operating Temperature
-25°C
IP Rating
IP67
Maximum Current
100mA
Maximum Operating Temperature
55°C
Standards/Approvals
No
Response Time
1ms
Hazardous Area Certification
No
Series
E3S
Housing Material
Die Cast Zinc
Detection Range
5 → 200 mm
Product details
E3S-CL Background Suppression
Diffuse scan, background suppressed in a compact package offering stable detection regardless of colour, material or size.The optical system is designed to eliminate problems associated with dirt build up on the lens.
Sensing distance adjustable by a 6 turn potentiometer (with indicator)
Zinc diecast case, acrylics lens, PES operating panel cover IP67
Mounting bracket and fasteners included
Prewired 2m cable
Operating temperature range -25° to +55°C
Response time 1ms
Ripple 10% max
Short circuit, reverse polarity and mutual interference protection
Light and stability LED indication
