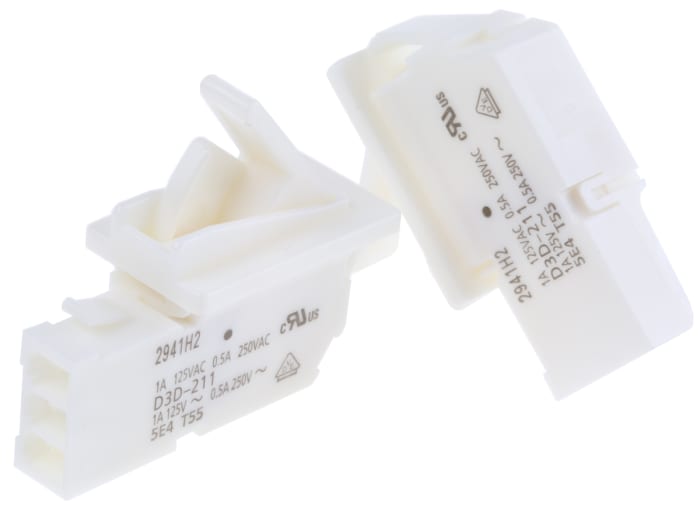

Mini door switch SPDT, lever actuator
Technical Document
Specifications
Brand
OmronActuator Type
Lever
Contact Configuration
SPDT
Contact Current Rating
500 mA V ac @ 250
Terminal Type
Through Hole
IP Rating
IP40
Contact Material
Gold Alloy
Mechanical Life
300000Operations
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+60°C
Operating Temperature Range
-30 → +60°C
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
P.O.A.
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
P.O.A.
1
Stock information temporarily unavailable.
Please check again later.
