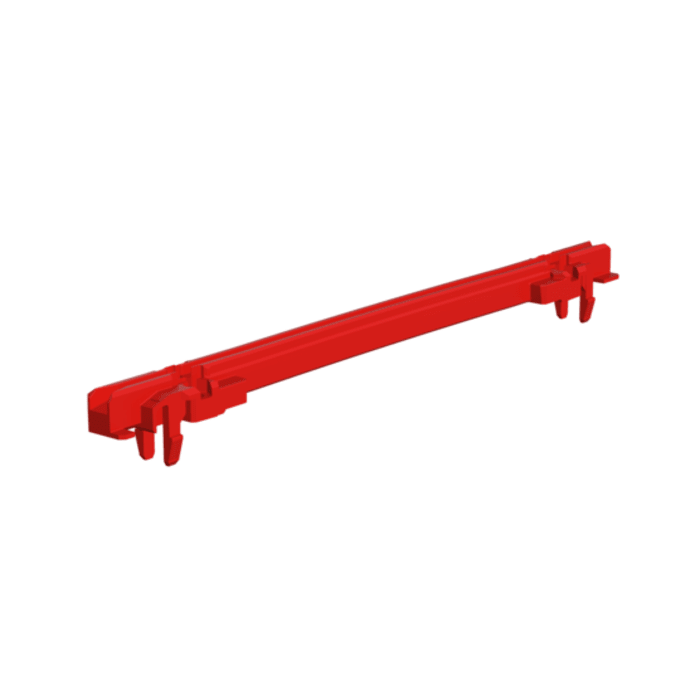

nVent SCHROFF Guide Rail

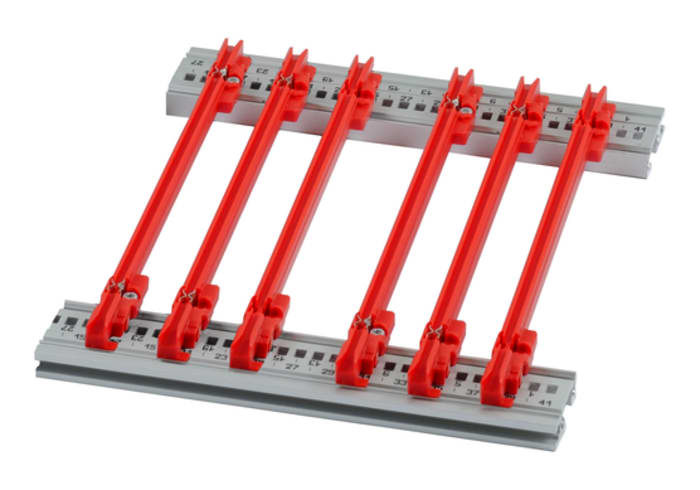

The Schroff new generation Standard type plastic guide rails for reliable retention of PCBs or plug-in units. It offers a significantly increased stability, due to a optimized design and high quality material (PC) with improved fire safety properties (while being halogen-free). It can be clipped into horizontal rails (Al extrusion) or into 1.5 mm thick plates. It can be bolted to the horizontal rails Type H and R for higher shock and vibration requirements. An Optional ESD clip is added for a conductive contact between PCB and horizontal rail is available. The Storage temperature range is from -40°C to 130°C.

• Standard type guide rail
• Works with Sub racks, Cases, 19" Chassis, Systems
• Board depth is 160 mm and Groove width is 2
• Construction material is Polycarbonate and Red colour

Notes

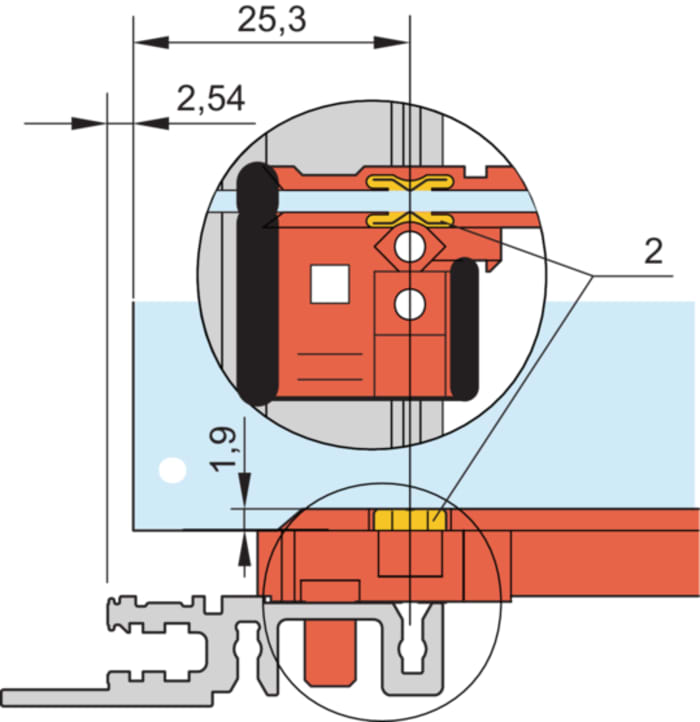

Optional ESD Clips:
ESD Clips can be added to this guide rails.
Please oder seperately : RS stock nr. 283-9193 (pack of 50)
