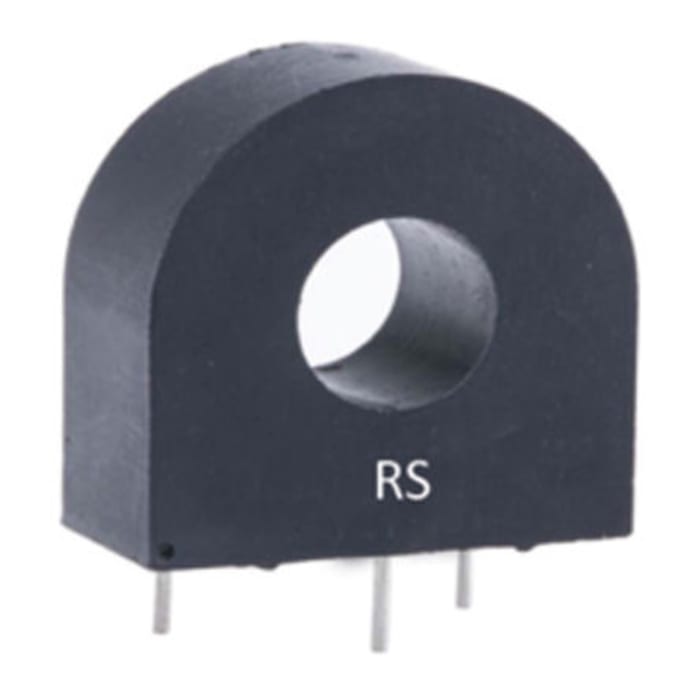

Nuvotem Talema AC-1 Series Current Transformer, 15A Input, 15:1
Technical Document
Specifications
Brand
Nuvotem TalemaCurrent Ratio
15:1
Series
AC-1
Input Current
15A
Overall Width
23.8mm
Overall Depth
11.12mm
Minimum Temperature
-40°C
Maximum Temperature
+120°C
Mounting Type
PCB Mount
Dimensions
23.8 x 23.8 x 11.12 mm
Product details
High Sensitivity, 50/60Hz
PCB mount current transformers encapsulated in UL94 V0 rated plastic. Applications include: Current overload detection, metering and ground fault detection.
High volt per amp output
4kV isolation voltage
Low Cost Current Sense Transformers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₹ 1,319.00
₹ 263.80 Each (In a Pack of 5) (Exc. GST)
₹ 1,556.42
₹ 311.284 Each (In a Pack of 5) (inc. GST)
5
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 1,319.00
₹ 263.80 Each (In a Pack of 5) (Exc. GST)
₹ 1,556.42
₹ 311.284 Each (In a Pack of 5) (inc. GST)
5
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 45 | ₹ 263.80 | ₹ 1,319.00 |
| 50 - 95 | ₹ 252.96 | ₹ 1,264.80 |
| 100 - 245 | ₹ 246.21 | ₹ 1,231.05 |
| 250 - 495 | ₹ 239.82 | ₹ 1,199.10 |
| 500+ | ₹ 233.75 | ₹ 1,168.75 |
