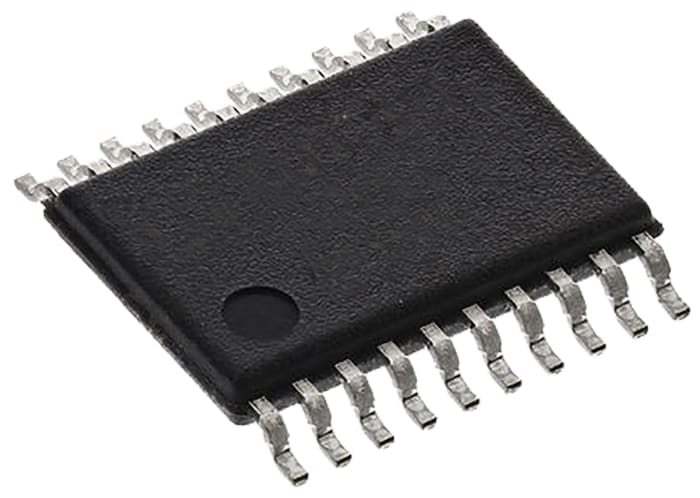

Nexperia 74HC244PW,112 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP
Technical Document
Specifications
Brand
NexperiaLogic Family
74HC
Logic Function
Buffer, Line Driver
Number of Channels per Chip
8
IC Type
Buffer & Line Driver IC
Input Type
CMOS
Output Type
3 State
Polarity
Non-Inverting
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
20
Maximum High Level Output Current
-7.8mA
Maximum Low Level Output Current
7.8mA
Maximum Propagation Delay Time @ Maximum CL
165ns
Dimensions
6.6 x 4.5 x 0.95mm
Minimum Operating Supply Voltage
2 V
Maximum Operating Supply Voltage
6 V
Propagation Delay Test Condition
50pF
Country of Origin
Thailand
Product details
74HC Family Inverters & Buffers, Nexperia
A range of NXP Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
₹ 1,544.25
₹ 20.59 Each (In a Tube of 75) (Exc. GST)
₹ 1,822.21
₹ 24.296 Each (In a Tube of 75) (inc. GST)
75
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 1,544.25
₹ 20.59 Each (In a Tube of 75) (Exc. GST)
₹ 1,822.21
₹ 24.296 Each (In a Tube of 75) (inc. GST)
75
Stock information temporarily unavailable.
Please check again later.
