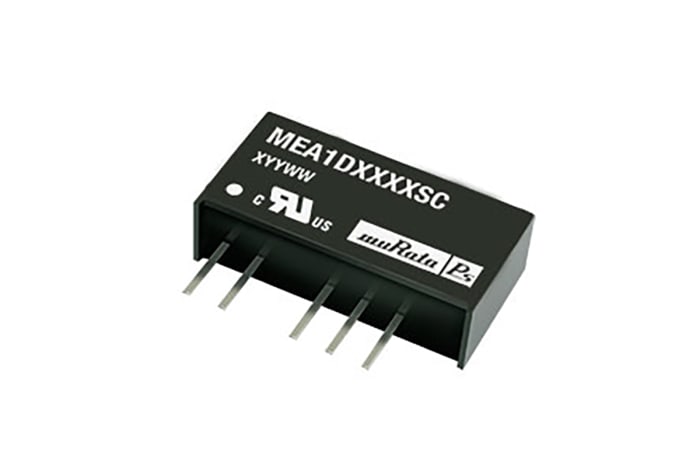

Murata Power Solutions MEA1 Isolated DC-DC Converter, ±12V dc/ ±42mA Output, 13.5 → 16.5 V dc Input, 1W, Through
Technical Document
Specifications
Output Voltage
±12V dc
Input Voltage Range
13.5 → 16.5 V dc
Power Rating
1W
Input Voltage Nominal
15 V dc
Output Current
±42mA
Mounting Type
Through Hole
Number of Outputs
2
Package
DIP
Isolation Voltage
1kV dc
Depth
7mm
Length
19.7mm
Series
MEA1
Load Regulation
±2.7%
Minimum Temperature
-40°C
Efficiency
87.5%
Maximum Temperature
+85°C
Country of Origin
China
Product details
Murata 1W DIP Dual Output Unregulated Isolated DC-DC Converter - MEA1 Series
1W dual output unregulated DC/DC converters with galvanic isolation to reduce switching noise. These 1W dual output 1 kVDC isolated unregulated DC/DC converters have a wide temperature performance at full load, do not require a heatsink or any external components, have an industry standard pin-out and power sharing on output. All of the rated power may be drawn from a single output providing the total load doesn't exceed 1W. An ideal application for these 1W dual output 1 kVDC isolated unregulated DC/DC converters is the provision of dual rail supplies.
Industry standard pin-out
Heatsink not required
Power sharing on output
Efficiency of up to 89.5 %
Power density to 85W/cm3
Wide temperature performance at full 1W load; -40° to 85°C
Fully encapsulated with toroidal magnetics
No external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material
Approvals
cULus
Standards
UL 60950
Murata Power Solutions - DIP
