Murata Power Solutions Digital Voltmeter DC, LED Display 3, 3.5-Digits ±2 V
Technical Document
Specifications
Current Type
DC
Number Of Digits
3, 3.5
Display Type
LED
Cutout Height
21.29mm
Cutout Width
33.93mm
Depth
25.4mm
Meter Accuracy
±2 V
Analogue Effect
Digits Only
Minimum Temperature
-25°C
Meter Type
Voltmeter
Maximum Temperature
+60°C
Country of Origin
China
Product details

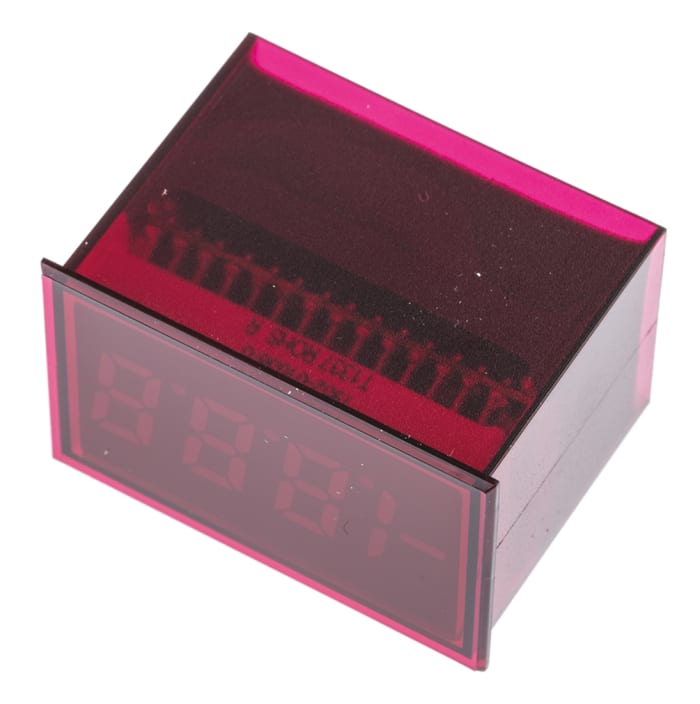

DMS-20PC-DCM - Self-Powered LED DC Voltage Monitors
The digital panel voltmeter DMS-20PC-DCM series of self-powered, positive-reading, DC voltage monitors are great replacements for older, hard-to-read, analogue panel meters. Simply connect a positive DC voltage across the rear terminals and the meters are fully operational, no additional components or power supplies are required.
A rugged, epoxy-encapsulated, polycarbonate case provides excellent protection against moisture, shock and vibration.
Digital voltmeters with a large 9.4 mm, red or blue, LED display
Different input voltage ranges from +4.50- +19.99V to +30.0- +264V
Self-powered, only two connections required
Ultra-low power consumption (8 mA typ.)
Super reliable, epoxy-encapsulated, construction
Subminiature size with 35x22.4x25.4 mm
Built-in reverse polarity protection assures simple, trouble-free installation
Ideal replacements for analogue panel meters
Murata Power Solutions Series
₹ 5,514.89
₹ 5,514.89 Each (Exc. GST)
₹ 6,507.57
₹ 6,507.57 Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 5,514.89
₹ 5,514.89 Each (Exc. GST)
₹ 6,507.57
₹ 6,507.57 Each (inc. GST)
1
Stock information temporarily unavailable.
Please check again later.
Technical Document
Specifications
Current Type
DC
Number Of Digits
3, 3.5
Display Type
LED
Cutout Height
21.29mm
Cutout Width
33.93mm
Depth
25.4mm
Meter Accuracy
±2 V
Analogue Effect
Digits Only
Minimum Temperature
-25°C
Meter Type
Voltmeter
Maximum Temperature
+60°C
Country of Origin
China
Product details
DMS-20PC-DCM - Self-Powered LED DC Voltage Monitors
The digital panel voltmeter DMS-20PC-DCM series of self-powered, positive-reading, DC voltage monitors are great replacements for older, hard-to-read, analogue panel meters. Simply connect a positive DC voltage across the rear terminals and the meters are fully operational, no additional components or power supplies are required.
A rugged, epoxy-encapsulated, polycarbonate case provides excellent protection against moisture, shock and vibration.
Digital voltmeters with a large 9.4 mm, red or blue, LED display
Different input voltage ranges from +4.50- +19.99V to +30.0- +264V
Self-powered, only two connections required
Ultra-low power consumption (8 mA typ.)
Super reliable, epoxy-encapsulated, construction
Subminiature size with 35x22.4x25.4 mm
Built-in reverse polarity protection assures simple, trouble-free installation
Ideal replacements for analogue panel meters
Murata Power Solutions Series
