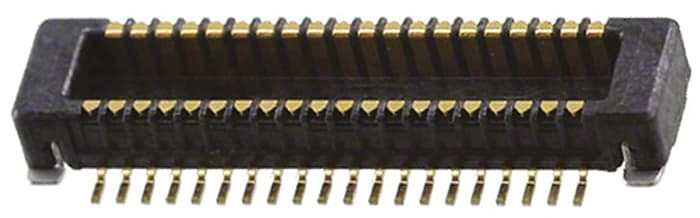

Molex SlimStack Series Straight Surface PCB Header, 40 Contact(s), 0.5 mm Pitch, 2 Row, Shrouded

RS Stock No.: 797-8916Brand: MolexManufacturers Part No.: 55650-0488Distrelec Article No.: 304-57-495
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

SlimStack

Product Type

PCB Header

Pitch

0.5mm

Current

500mA

Number of Contacts

40

Housing Material

Nylon

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Board-to-Board

Mount Type

Surface

Contact Material

Brass

Contact Plating

Gold

Minimum Operating Temperature

-40°C

Row Pitch

0.5mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

No

Voltage

50 V

Country of Origin

Japan

Product details

SlimStack™ Stacking 55650 Series Plug Headers

The 0.50 mm Pitch SlimStack™ 55650 Series Plug is a Dual Row, Surface Mount, Vertical Header, with Solder Tab. When mated to the 54363 Series Receptacle, stock number 720-6498 , gives a Stack Height of 2.00 mm.
