Technical Documents
Specifications
Brand
MicrochipProduct Type
Microcontroller
Series
PIC32CZ
Package Type
TFBGA
Mount Type
Surface
Pin Count
208
Device Core
ARM Cortex M7
Data Bus Width
32bit
Program Memory Size
8MB
Maximum Clock Frequency
300MHz
RAM Size
1MB
Maximum Supply Voltage
3.63V
DACs
7 bit
Minimum Operating Temperature
-40°C
Analogue Comparators
2
Maximum Operating Temperature
85°C
Length
15mm
Standards/Approvals
SD/SDHC Memory Card Specification Version 3.01, SDIO specification version 3.0, IEEE802.1AS, IEEE802.3az, JDEC specification, IEEE1588, ISO-7816 UART, IEEE802.1Qav
Width
15mm
Minimum Supply Voltage
1.75V
Number of Timers
10
Instruction Set Architecture
Thumb
Automotive Standard
No
ADCs
16 x 12 Bit
Program Memory Type
FLASH
Product Details

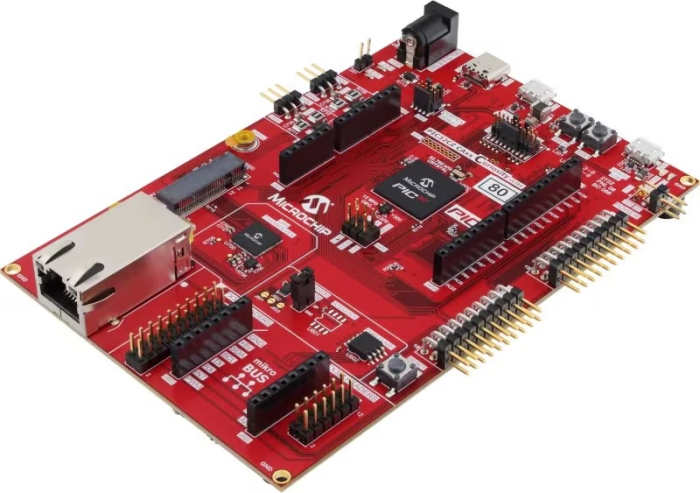

The Microchip Microcontrollers is latest Arm Cortex-M7-based microcontroller (MCU) with a wide range of connectivity options including Ethernet, CAN FD, HS USB, I2S, I2C, SPI, etc. that can implement such functionality and applications such as industrial gateways, graphics, and automotive applications. Users can expand functionality through Arduino Uno R3, mikroBUSTM Socket, or Xplained Pro compatible expansion boards.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₹ 27,597.31
₹ 27,597.31 Each (Exc. GST)
₹ 32,564.83
₹ 32,564.83 Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 27,597.31
₹ 27,597.31 Each (Exc. GST)
₹ 32,564.83
₹ 32,564.83 Each (inc. GST)
Stock information temporarily unavailable.
1
