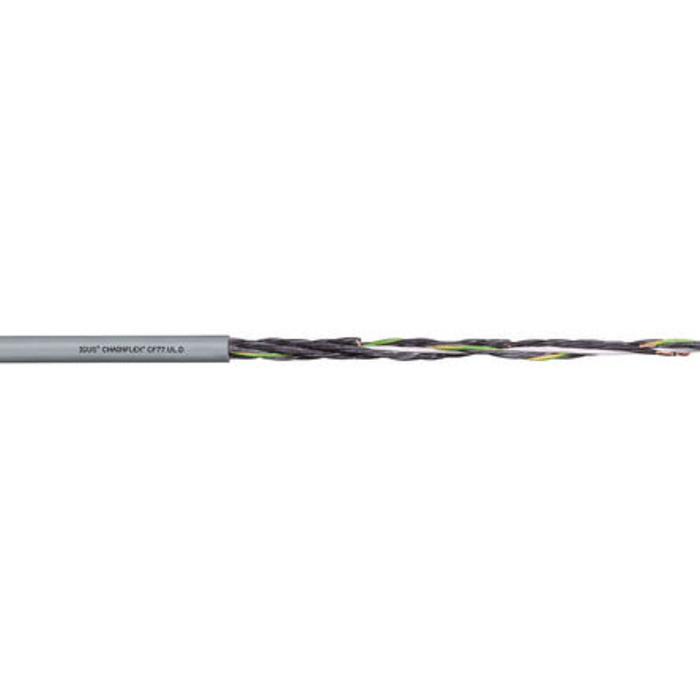

Igus chainflex CF77.UL.D Control Cable, 20 Cores, 0.75 mm², Unscreened, 25m, Grey PUR Sheath, 18 AWG
Technical Document
Specifications
Brand
IgusSeries
chainflex CF77.UL.D
Number of Cores
20
Cross Sectional Area
0.75 mm²
American Wire Gauge
18 AWG
Conductor Material
Bare Copper
Sheath Material
PUR
Sheath Colour
Grey
Screened/Unscreened
Unscreened
Armoured
No
Screen Type
Unscreened
Outer Diameter
14mm
Length
25m
Minimum Bend Radius
4 x D
Voltage Rating
300 V
Current Rating
14 A
Fire Behaviour
Flame Retardant, Halogen Free
Maximum Operating Temperature
+80°C
Conductor Resistance
26 Ω/km
Insulation material
TPE
Minimum Operating Temperature
-35°C
Oil Resistant
Yes
Cable Shape
Multicore
Earth Cable
Yes
Country of Origin
Germany
Product details
Chainflex® PUR Control Cable
Chainflex PUR control cable is designed for high load requirements.
Features and Benefits
• Oil-resistant and coolant-resistant
• Flame-retardant in accordance to IEC 332-1, CEI 20-35, FT1
• Notch-resistant
• PVC-free/halogen-free
• Core insulation: mechanically high-quality TPE mixture
• Especially for freely suspended and gliding travel distances up to 100 m
Stock information temporarily unavailable.
₹ 52,190.59
₹ 52,190.59 1 Reel of 25 Metres (Exc. GST)
₹ 61,584.90
₹ 61,584.90 1 Reel of 25 Metres (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 52,190.59
₹ 52,190.59 1 Reel of 25 Metres (Exc. GST)
₹ 61,584.90
₹ 61,584.90 1 Reel of 25 Metres (inc. GST)
Stock information temporarily unavailable.
1
