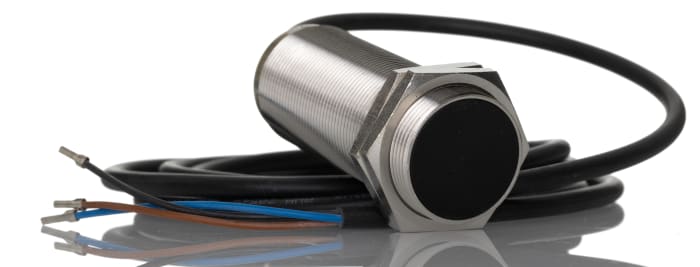

ifm electronic Threaded Barrel Proximity Sensor, M30, 10 mm Detection, 10 → 36 V dc

Name: ifm electronic Threaded Barrel Proximity Sensor, M30, 10 mm Detection, 10 → 36 V dc
Brand: ifm electronic
SKU: 1585164

RS Stock No.: 158-5164Brand: ifm electronicManufacturers Part No.: DI5001

View all in Proximity Sensors

Technical Documents

Specifications

Brand

ifm electronic

Thread Size

M30

Body Style

Threaded Barrel

Detection Range

10 mm

Supply Voltage

10 → 36 V dc

IP Rating

IP67

Length

81mm

Mounting Type

Flush

Housing Material

PBT

Maximum dc Voltage

36V

Minimum Operating Temperature

-25°C

Switching Current

250 mA

Reverse Polarity Protection

Yes

Short Circuit Overload Protection

Yes

Maximum Operating Temperature

+80°C

Country of Origin

Germany

Product Details

IFM DI Series Speed Monitors

Thread type M30 x 1.5 / overall length 81 mm
Set point adjustable by potentiometer; indication by yellow LED (= sensor suppressed) and green LED (= actual value ≥ set point, output is conductive)
Easy installation, problem-free operation

Simple, robust solution for monitoring minimum rotation speeds, impulses etc.
The compact speed monitor detects pulses without contact (e.g. from the cams of a shaft or a drive unit) and compares them to the preset value. If the rotation speed is in the acceptable range, the output is conductive.
