Fox Electronics 20MHz Crystal ±30ppm HC-49-SLF 2-Pin 11.35 x 4.65 x 3.6mm

RS Stock No.: 547-6317Brand: Fox ElectronicsManufacturers Part No.: FC4STCBMF20.0-BAG200
brand-logo
View all in Crystal Units

Technical Document

Specifications

Brand

Fox Electronics

Standard Frequency

20MHz

Mounting Type

Through Hole

Load Capacitance

20pF

Package Type

HC-49-SLF

Pin Count

2

Length

11.35mm

Width_SC_PC

4.65mm

Height

3.6mm

Dimensions

11.35 x 4.65 x 3.6mm

Frequency Tolerance

±30ppm

Frequency Stability

±50ppm

Series Resistance

30Ω

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-20°C

Country of Origin

China

Product details

HC49S Fox Electronics

Crystals Through Hole

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
You may be interested in
Abracon 20MHz Crystal ±30ppm HC-49-SLF 2-Pin 11.35 x 4.64 x 3.6mm
Abracon 20MHz Crystal ±30ppm HC-49-SLF 2-Pin 11.35 x 4.64 x 3.6mmBrand: Abracon
₹ 36.438Each (In a Pack of 25) (Exc. GST)

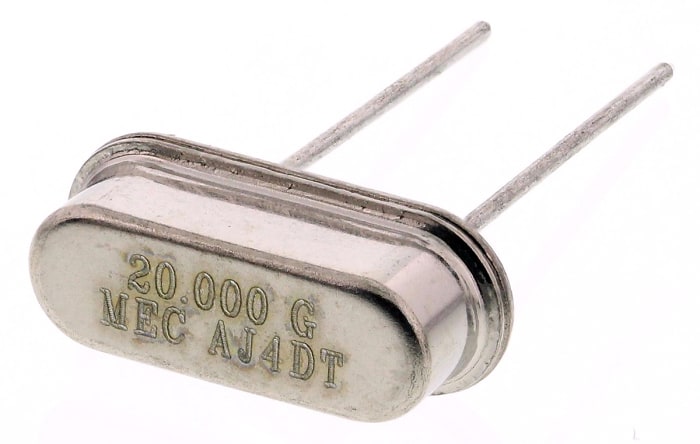

MERCURY 20MHz Crystal ±30ppm HC-49-US 2-Pin 10.7 x 4.3 x 3.5mm
