Technical Document
Specifications
Brand
FestoProduct Type

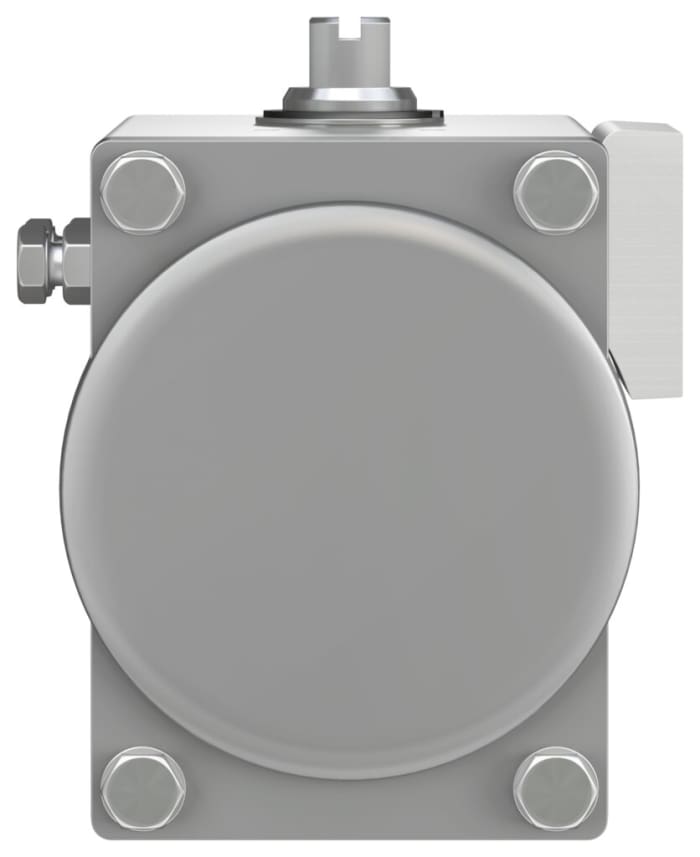

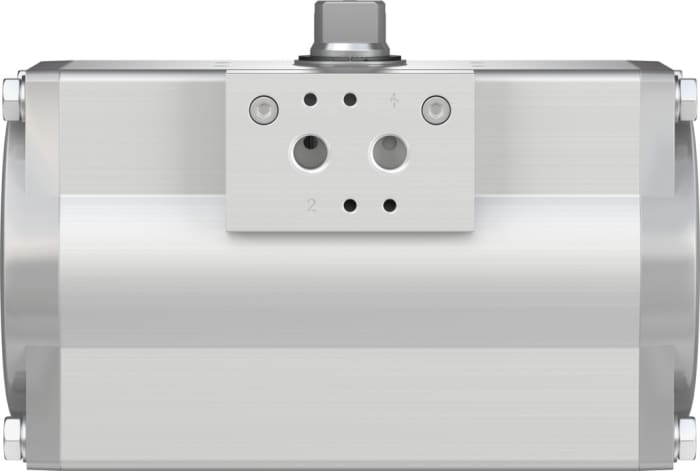

Pneumatic Rotary Actuator
Shaft Type
T17
Action Type
Double Acting
Bore Size
120mm
Connection Thread Standard
NPT
Series
DFPD
Maximum Operating Pressure
8 bar
Sub Type
Actuator
Maximum Torque Rating
117.4Nm
Minimum Operating Temperature
-20°C
Angle of Rotation
90°
Maximum Operating Temperature
80°C
Standards/Approvals
ISO 5211, RoHS, VDE 3845, ATEX, CE, UKCA
Port Thread Size
1/4 in
Country of Origin
India
Stock information temporarily unavailable.
₹ 49,714.71
₹ 49,714.71 Each (Exc. GST)
₹ 58,663.36
₹ 58,663.36 Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 49,714.71
₹ 49,714.71 Each (Exc. GST)
₹ 58,663.36
₹ 58,663.36 Each (inc. GST)
Stock information temporarily unavailable.
1
