Epson 32MHz Crystal Unit ±10ppm FA-20H 4-Pin 2.5 x 2 x 0.55mm
Technical Document
Specifications
Brand
EpsonStandard Frequency
32MHz
Mounting Type
Surface Mount
Load Capacitance
8pF
Package Type
FA-20H
Pin Count
4
Length
2.5mm
Width_SC_PC
2mm
Height
0.55mm
Dimensions
2.5 x 2 x 0.55mm
Frequency Tolerance
±10ppm
Series Resistance
50Ω
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-40°C
Product details

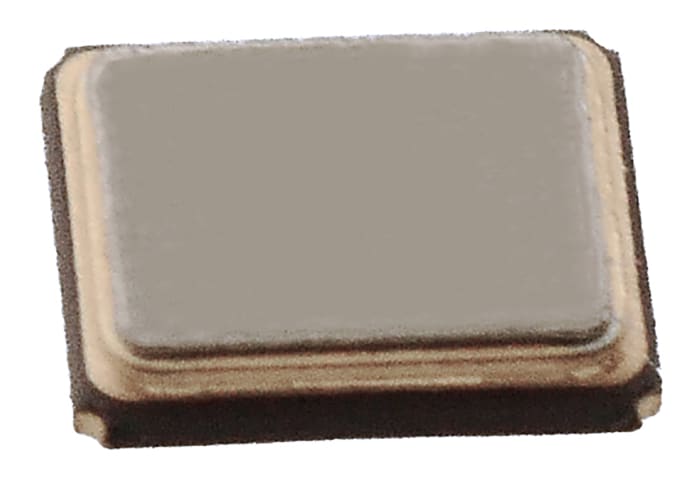

EPSON FA-20H Miniature SMD Crystal
The FA-20H Series is a low profile, ultra miniature surface mount crystal from EPSON. Applications in Mobile phones, Bluetooth, W-LAN, ISM band radio and Clock for MPU.
Features & Benefits:
Nominal frequency range: 12 MHz to 48 MHz
External dimensions: 2.5 x 2.0 x 0.55 mm
Overtone order: Fundamental
Crystals 2.5x2mm Ceramic case
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₹ 183.46
₹ 91.73 Each (In a Bag of 2) (Exc. GST)
₹ 216.48
₹ 108.241 Each (In a Bag of 2) (inc. GST)
2
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 183.46
₹ 91.73 Each (In a Bag of 2) (Exc. GST)
₹ 216.48
₹ 108.241 Each (In a Bag of 2) (inc. GST)
2
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Bag |
|---|---|---|
| 2 - 18 | ₹ 91.73 | ₹ 183.46 |
| 20 - 48 | ₹ 89.32 | ₹ 178.64 |
| 50 - 98 | ₹ 87.03 | ₹ 174.06 |
| 100 - 198 | ₹ 85.92 | ₹ 171.84 |
| 200+ | ₹ 84.85 | ₹ 169.70 |
