Crouzet Plunger Limit Switch, NO/NC, IP56, SP, 250V ac Max, 5A Max

RS Stock No.: 539-296Brand: CrouzetManufacturers Part No.: 83733327
brand-logo
View all in Limit Switches

Technical Document

Specifications

Brand

Crouzet

Actuator Type

Plunger

Pole and Throw Configuration

SP

Normal State Configuration

NO/NC

IP Rating

IP56

Maximum Current

5A

Maximum AC Voltage

250V

Connection Type

Cable

Length

36mm

Minimum Operating Temperature

-5°C

Depth

24.5mm

Width

49mm

Maximum Operating Temperature

+70°C

Mechanical Life

1000000Cycles

Mechanical Life (Minimum)

1000000 cycles

Minimum Operating Temperature

-5°C

Country of Origin

Morocco

Product details

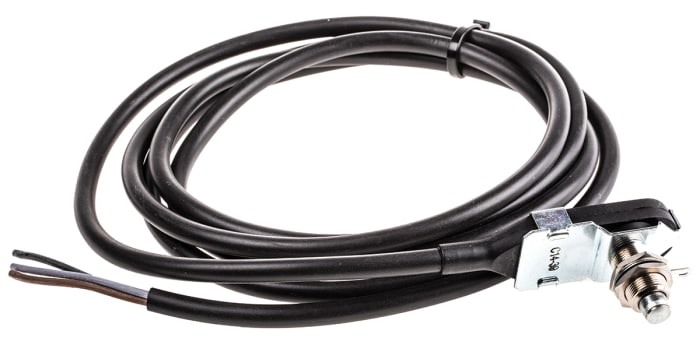

Precision Limit Switches with Cable

High precision limit switch with pre-wired 3 core cable (black,brown,blue), featuring an adjustable threaded barrel fixing.

Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations

Approvals

CSA

Stock information temporarily unavailable.

Please check again later.

Stock information temporarily unavailable.

₹ 6,798.09

Each (Exc. GST)

₹ 8,021.75

Each (Including GST)

Crouzet Plunger Limit Switch, NO/NC, IP56, SP, 250V ac Max, 5A Max

1

Available in multiples of 1
1₹ 6,798.09
2₹ 13,596.18
3₹ 20,394.27
4₹ 27,192.36
5₹ 33,776.25
6₹ 40,531.50
7₹ 47,286.75
8₹ 54,042.00
9₹ 60,797.25
10₹ 66,201.40
11₹ 72,821.54
12₹ 79,441.68
13₹ 86,061.82
14₹ 92,681.96
15₹ 99,302.10
Imported by:

RS Components & Controls (I) Ltd

Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301

₹ 6,798.09

Each (Exc. GST)

₹ 8,021.75

Each (Including GST)

Crouzet Plunger Limit Switch, NO/NC, IP56, SP, 250V ac Max, 5A Max
Stock information temporarily unavailable.

1

Available in multiples of 1
1₹ 6,798.09
2₹ 13,596.18
3₹ 20,394.27
4₹ 27,192.36
5₹ 33,776.25
6₹ 40,531.50
7₹ 47,286.75
8₹ 54,042.00
9₹ 60,797.25
10₹ 66,201.40
11₹ 72,821.54
12₹ 79,441.68
13₹ 86,061.82
14₹ 92,681.96
15₹ 99,302.10

Buy in bulk

quantityUnit price
1 - 4₹ 6,798.09
5 - 9₹ 6,755.25
10 - 24₹ 6,620.14
25 - 49₹ 6,487.74
50+₹ 6,357.98

Technical Document

Specifications

Brand

Crouzet

Actuator Type

Plunger

Pole and Throw Configuration

SP

Normal State Configuration

NO/NC

IP Rating

IP56

Maximum Current

5A

Maximum AC Voltage

250V

Connection Type

Cable

Length

36mm

Minimum Operating Temperature

-5°C

Depth

24.5mm

Width

49mm

Maximum Operating Temperature

+70°C

Mechanical Life

1000000Cycles

Mechanical Life (Minimum)

1000000 cycles

Minimum Operating Temperature

-5°C

Country of Origin

Morocco

Product details

Precision Limit Switches with Cable

High precision limit switch with pre-wired 3 core cable (black,brown,blue), featuring an adjustable threaded barrel fixing.

Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations

Approvals

CSA
