CAEMMC, 100m Cat6a, Purple, F/FTP Shielded, Unterminated LSZH Sheath
Technical Document
Specifications
Series
MMC
LAN Category
Cat6a
Length
100m
Terminated/Unterminated
Unterminated
Shield Type
F/FTP
Shielded/Unshielded
Shielded
CPR Certification
Dca
Outer Sheath Material
LSZH
Sheath Colour
Purple
Core Strands
1/23
Fire Behaviour
Low Smoke Zero Halogen (LSZH)
Conductor Strand Type
Solid
Capacitance
45pF/m
Cross Sectional Area
0.259 mm²
Number of Strands
8
Outer Diameter
7.4mm
American Wire Gauge
23AWG
Standards Met
Euroclass Cca-s1 d1 a1
Cable Shape
Twisted Pair
Country of Origin
Turkey
Product details

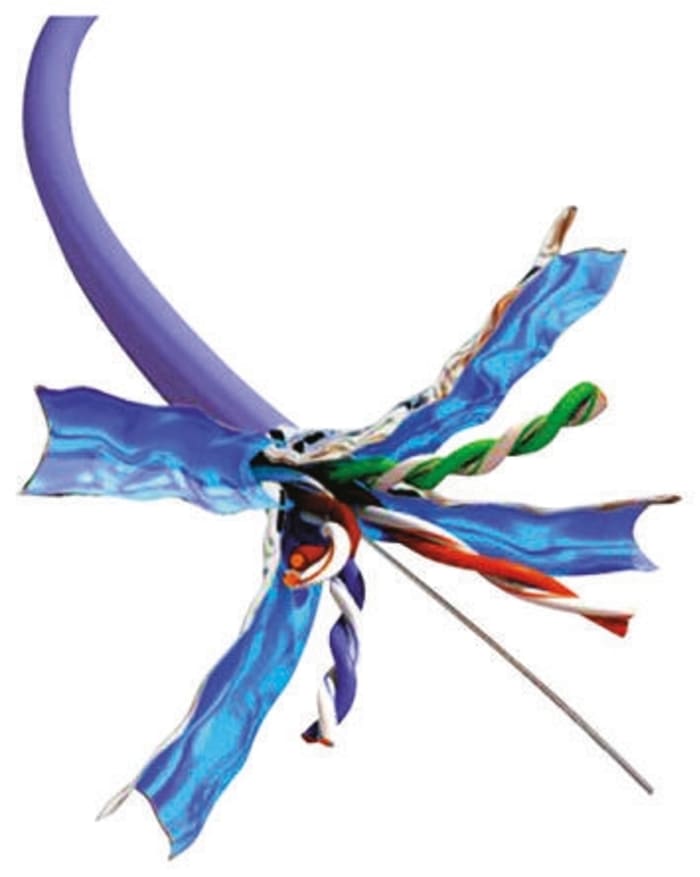

Category 6 F/FTP cable
A low smoke zero halogen Category 6A cable for various applications.
Features and Benefits
· Exceeds Cat 6a standards & has been tested up to 555MHz
· Double shielded, providing excellent protection from electromagnetic interference
Applications
· ISDN - VoIP
· TOKEN RING 4/16 Mbits - 100 VG-AnyLAN
· TP-PMD/TP-DDI - ATM 155, 622,1200 Mbits
· ETHERNET: 10 Base T, 100 Base Tx, 100 Base T4, 1000 Base T, 10 G Base T
· IEEE 802.3af – PoE (Power Over Ethernet)
· Future 802.3at – PoEP (Power over Ethernet Plus)
Standards
IEC 61156-6, EN 50288.
₹ 20,018.68
₹ 20,018.68 1 Reel of 100 Metres (Exc. GST)
₹ 23,622.04
₹ 23,622.04 1 Reel of 100 Metres (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 20,018.68
₹ 20,018.68 1 Reel of 100 Metres (Exc. GST)
₹ 23,622.04
₹ 23,622.04 1 Reel of 100 Metres (inc. GST)
1
Stock information temporarily unavailable.
Please check again later.
