Broadcom Through Hole Motion Sensor 5 V 5V, SPI, Module, 15-Pin

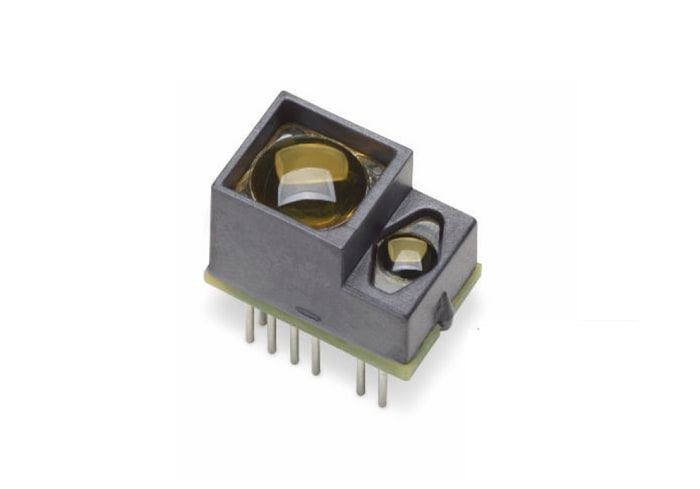

Broadcom AFBR-S50 Series Motion Sensor, 12.4mm Length, 5V Maximum Supply Voltage - AFBR-S50MV85G

This motion sensor is a Compact module designed to detect movement and provide a digital Interface for system integration. It operates from a fixed supply and communicates via a serial peripheral Interface suitable for embedded and control applications. The device is built using a CMOS sensing element and is intended for non-automotive environments where a through-hole mounting option is preferred.

Features and Benefits:

• 5 V supply with 33 mA draw for low-power operation
  SPI connectivity enabling straightforward digital interfacing
  3 kHz maximum frequency response for dynamic motion capture
  15-pin configuration simplifying signal and power routing
  RoHS and UL-94V-0 material compliance for regulated assemblies

Applications

• Suitable for industrial motion monitoring in temperature extremes
  Used with microcontroller systems requiring SPI data transfer
  Ideal for through-hole mounting on legacy or robust PCBs
  Can be used for detecting Rapid movement in machinery control
  Suitable for sensor arrays where Compact height is required

What operating temperature range can it withstand?

It functions across an ambient range from -20°C to 70°C.

How is the sensor physically secured to a board?

It is manufactured for through-hole attachment providing mechanical stability.

What is the module’s physical footprint height?

The module presents a height of 7.9 mm for clearance planning.

Which signalling standard does it use for data exchange?

It communicates over an SPI Interface for synchronous serial data transfer.

What are the module’s plan dimensions for layout purposes?

The component measures 12.4 mm in length and 7.6 mm in width.
