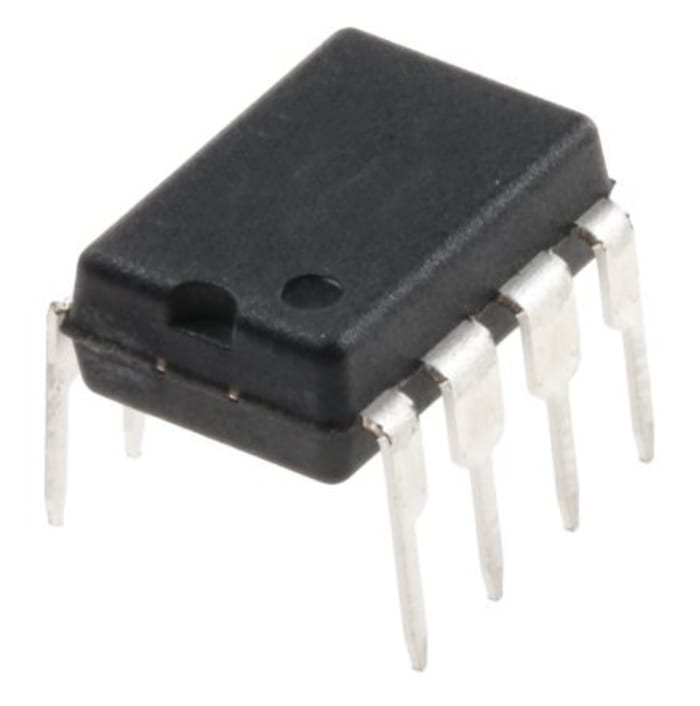

Broadcom, ACPL-827-000E DC Input Transistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP

RS Stock No.: 693-5937PBrand: BroadcomManufacturers Part No.: ACPL-827-000E
brand-logo
View all in Optocouplers

Technical Document

Specifications

Brand

Broadcom

Mounting Type

Through Hole

Output Device

Transistor

Maximum Forward Voltage

1.4V

Number of Channels

2

Number of Pins

8

Package Type

PDIP

Input Current Type

DC

Typical Rise Time

4µs

Maximum Input Current

50 mA

Isolation Voltage

5 kVrms

Maximum Current Transfer Ratio

600%

Minimum Current Transfer Ratio

50%

Typical Fall Time

3µs

Series

ACPL

Product details

Optocoupler, Transistor Output, Avago Technologies

The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.

Optocouplers, Avago Technologies
