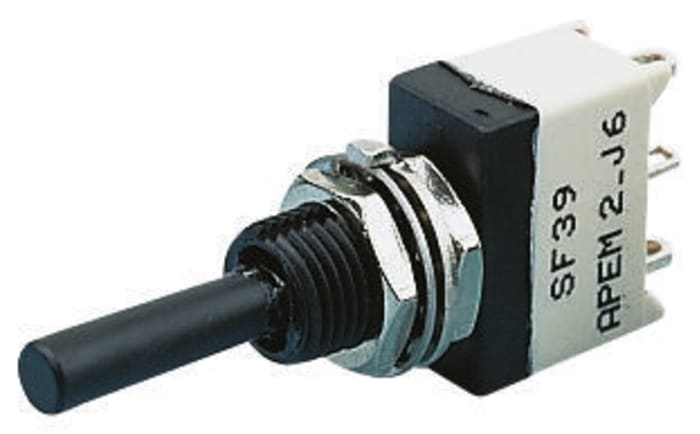

APEM Toggle Switch, Panel Mount, On-On, SPST, Solder Terminal
Technical Document
Specifications
Brand
ApemContact Configuration
SPST
Switch Operation
On-On
Contact Current Rating
5 A @ 125 V ac
Mounting Type
Panel Mount
Terminal Type
Solder
Actuator Length
10.7mm
Actuator Material
Brass
Contact Material
Silver
Contact Resistance
0.01Ω
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +85°C
Maximum Operating Temperature
+85°C
Country of Origin
France
Product details
Switches series SF
Range of threaded bushing switches.
Standard lever or insulated lever version.
The insulated lever model protects against electrostatic discharge up to 12kV.
Terminals sealed with epoxy resin.
O-ring inside bushing.
