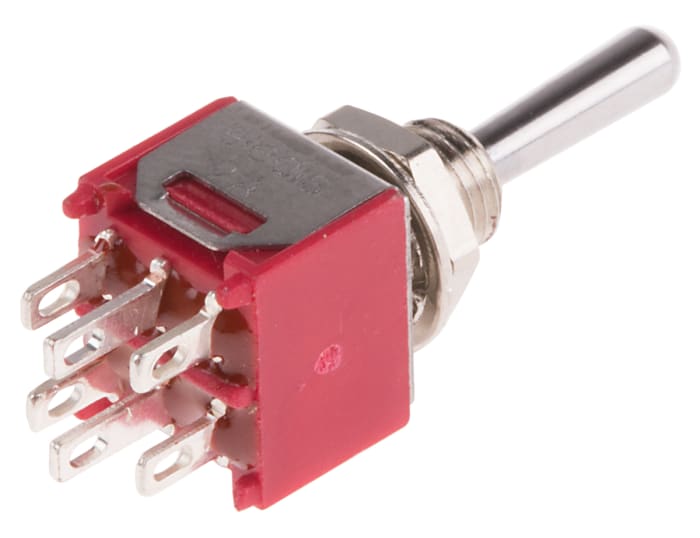

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal
Technical Document
Specifications
Brand
ApemContact Configuration
DPDT
Switch Operation
On-Off-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
Panel Mount
Terminal Type
Solder
Actuator Material
Brass
Contact Material
Silver
Contact Resistance
0.01Ω
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+85°C
Country of Origin
France
Product details
5000 Series - Front Panel Sealing
Panel-mount, miniature, single & double pole changeover toggle switches with internal and external sealing washers
Bush thread 1//4-40UNS (6·35-40UNS)
Solder tags
Silver contacts
Max. panel thickness; 1mm
Brass actuator and Diallyl Phthalate (UL 94 V-0) case
Approvals
UL; CSA
Miniature Lockable Toggle Switches
Approvals
UL E187490
