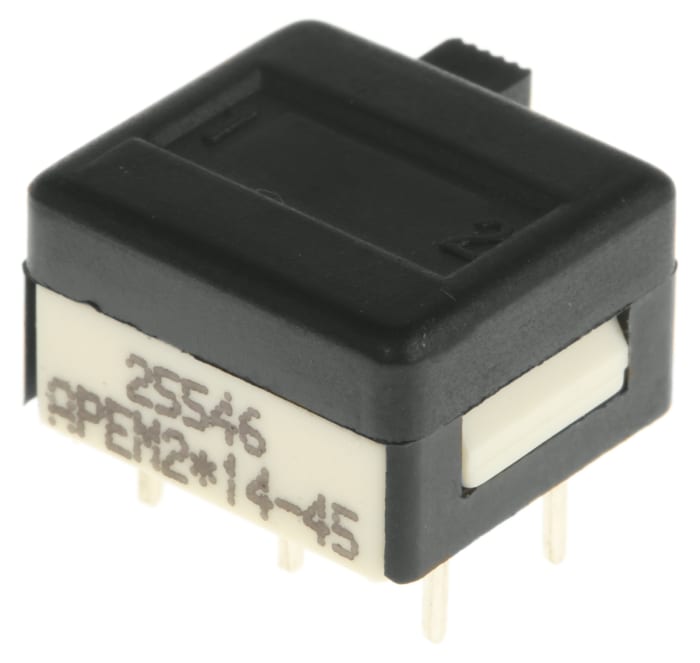

APEM PCB Slide Switch DPDT Latching 1 A @ 30 V dc Slide
Technical Document
Specifications
Brand
ApemContact Configuration
DPDT
Mounting Type
PCB
Switch Operation
Latching
Contact Current Rating
1 A @ 30 V dc
Terminal Type
Through Hole
Actuator Type
Slide
Length
14.1mm
Width
12.5mm
Depth
10.9mm
Dimensions
14.1 x 12.5 x 10.9mm
Contact Resistance
10mΩ
Mechanical Life
20000Operations
Contact Material
Silver
Operating Temperature Range
-40 → +85°C
Maximum Operating Temperature
+85°C
Actuator Material
Glass Fibre Reinforced PA
Minimum Operating Temperature
-40°C
Country of Origin
France
Product details
Apem Miniature Slide Switches - 25000N Series
Top & side actuation versions
Sealed terminals to prevent ingress of flux during soldering
Electrical life: 10000 cycles
Glass filled Polyamide actuator and PBT high temperature thermoplastic case
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
₹ 467.55
Each (Exc. GST)
₹ 551.71
Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 467.55
Each (Exc. GST)
₹ 551.71
Each (inc. GST)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | ₹ 467.55 |
| 25 - 99 | ₹ 462.87 |
| 100 - 249 | ₹ 458.25 |
| 250+ | ₹ 453.66 |
