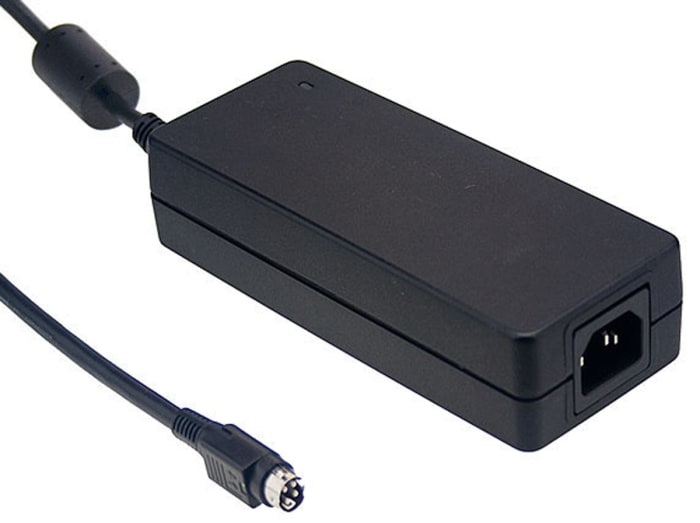

XP Power 120W Power Brick AC/DC Adapter 24V dc Output, 5A Output

RS Stock No.: 122-9837Brand: XP PowerManufacturers Part No.: VES120PS24
brand-logo
View all in AC/DC Adapters

Technical Document

Specifications

Brand

XP Power

Adapter Type

Power Brick Adapter

Plug Type

IEC

Output Voltage

24V dc

Input Voltage

80 → 275V ac

Output Current

5A

Maximum Temperature

+60°C

Output Connector

4-Pin Plug

Input Connector

C14

Number of Outputs

1

Power Rating

120W

Cable Length

1200mm

Efficiency

89%

MTBF

200kh

Standards Met

China Compulsory Certification Qualified, EN 55022, EN 60950-1, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, European CoC Tier 2, IEC 60950-1, IEC 68-2-27, IEC 68-2-6, MIL-HDBK-217F, UL 60950-1

Width

71mm

Depth

37.5mm

Minimum Temperature

0°C

Energy Efficiency Level

VI

Load Regulation

±5%

Line Regulation Range

±0.5%

Series

VES120

Length

168mm

Country of Origin

China

Product details

XP Power - VES120 Series of Plug-in Power Supplies

The VES120 series from XP Power offers a wide range of 120 W plug-in power supplies, all of which feature level VI energy efficiency. This highly reliable, low cost range features high power density, <0.15 W standby power and has single outputs from 12 V to 24 V.

120 W, Plug-in power supplies
Level VI energy efficiency
Single outputs from 12 V to 24 V
High power density
<0.15 W standby power
China Compulsory Certification (CCC) qualified
European CoC Tier 2

Switch Mode - XP Power
