Technical Document
Specifications
Brand
ApemNumber of Axes
2
Switch Technology
Dual Axis Potentiometric
IP Rating
IP65
Handle Type
Conical
Contact Material
Brass
Joystick Travel
±27.5 °
Terminal Type
Flying Lead
Mechanical Life
5000000Operations
Depth Behind Panel
36.6mm
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+55°C
Operating Temperature Range
-20 → +55°C
Handle Height
57mm
Country of Origin
United Kingdom
Product details

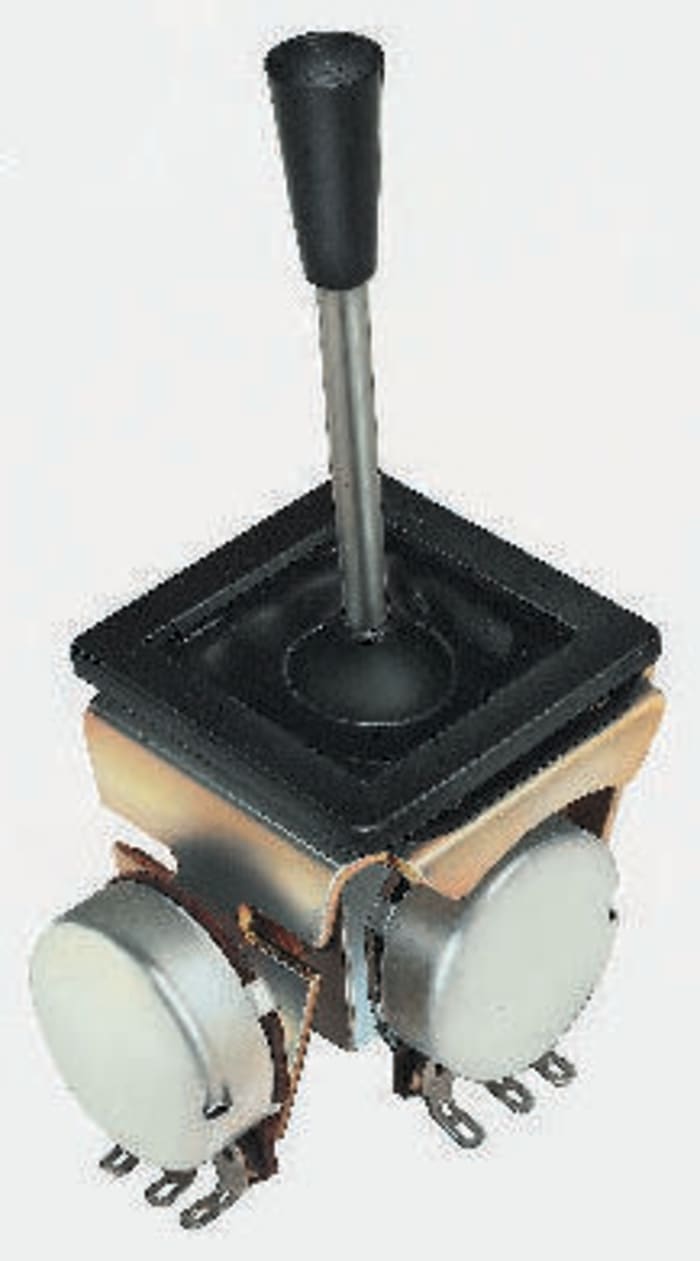

Potentiometer Joystick, Open Body
The 4000 series is a robust, industrial class potentiometer joystick. They have an all metal construction giving a long service life and a high level of performance. They have some advantages over contactless joysticks such as ease of interfacing, wider operating voltages, lower current drain and immunity to RFI.
Features & Benefits
Fully proportional joysticks
Robust mechanics with vinyl gaiter giving IP65 above panel protection
Inherently immune to RFI
High-quality potentiometers
Low current drain
Pre-wired with 200 mm long leads
Shaft throw: ±27.5°
Product Application Information
These joysticks are panel sealed to IP65 and thanks to their robust design they are ideally suited for heavy duty use within a wide range of temperatures and loads. Applications could include wheelchairs, factory automation and remote operated vehicles.
Stock information temporarily unavailable.
Please check again later.
₹ 18,798.45
Each (Exc. GST)
₹ 22,182.17
Each (inc. GST)
1
RS Components & Controls (I) Ltd
Distribution hub - B-89, Sector 67, Noida, Gautam Budh Nagar, (Uttar Pradesh), 201 301
₹ 18,798.45
Each (Exc. GST)
₹ 22,182.17
Each (inc. GST)
1
Buy in bulk
quantity | Unit price |
---|---|
1 - 4 | ₹ 18,798.45 |
5 - 9 | ₹ 18,064.73 |
10 - 14 | ₹ 16,976.04 |
15+ | ₹ 15,510.01 |
