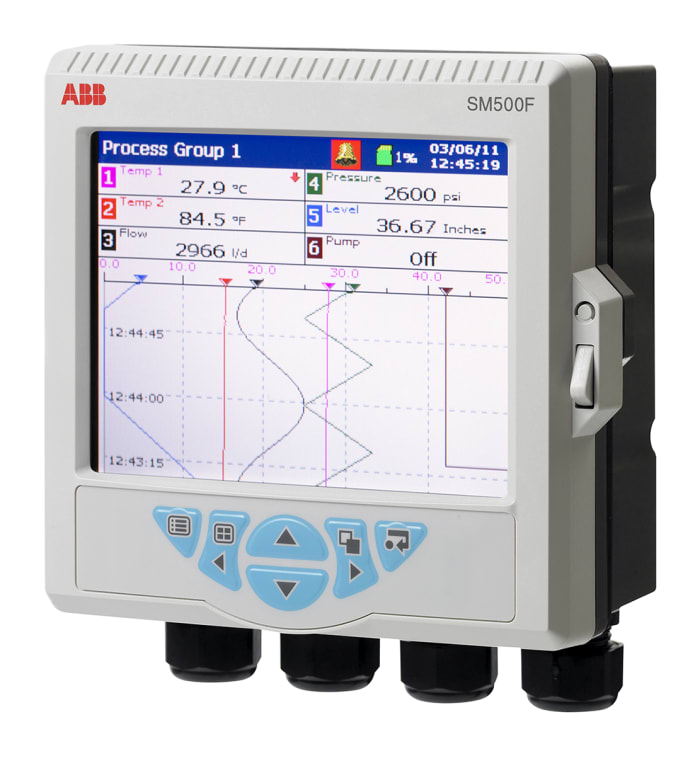

ABB SM501FCB, 1 Input Channels, Videographic Chart Recorder Measures Current, Millivolt, Resistance, Temperature,

RS Stock No.: 216-113Brand: ABBManufacturers Part No.: SM501FCB000000ESTD
brand-logo
View all in Chart Recorders

Technical Document

Specifications

Brand

ABB

Chart Type

Videographic

Number of Inputs

1

Parameter Measured

Current, Millivolt, Resistance, Temperature, Voltage

Maximum Temperature Measurement

+1100 °F, +1300 °C, +1650 °F, +1700 °C, +1800 °C, +2350 (N) °F, +300 °C, +3000 (R) °F, +3270 (B) °F, +550 °F, +600 °C, +900 °C

Maximum Current Measurement

50mA

Maximum Resistance Measurement

500 ￫ 10000Ω

Maximum Operating Voltage

265V ac

Maximum Voltage Measurement

+25V

Recorder Input Type

mA, mV, RTD, Thermocouple, V

Model Number p

SM501FCB

IP Rating

IP66

Best Temperature Measurement Accuracy

±0.1 %

Temperature Measurement Resolution

0.01%

Best Voltage Measurement Accuracy

±0.2 %

Width

144mm

Dimensions

144 x 144 x 79mm

Height

79mm

Weight

1kg

Minimum Operating Voltage

85V ac

Best Resistance Measurement Accuracy

±0.1 %

Voltage Measurement Resolution

0.01%

Power Source

Mains

Length

144mm

Resistance Measurement Resolution

0.01%

Best Current Measurement Accuracy

±0.2 %

Current Measurement Resolution

0.01 %

Country of Origin

United Kingdom
