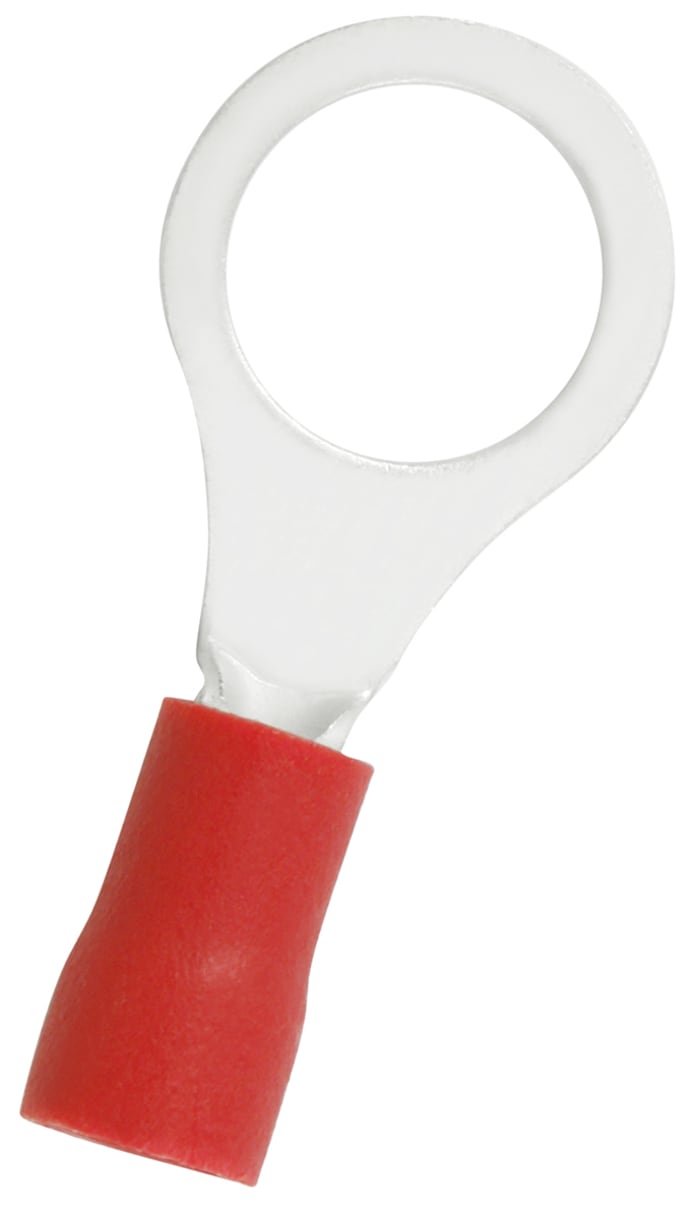

JST, FV Insulated Ring Terminal, M8 (5/16) Stud Size, 0.25mm² to 1.65mm² Wire Size, Red

RS Stock No.: 688-1183Brand: JSTManufacturers Part No.: FVWS1.25-8(LF)
brand-logo
View all in Ring Terminals

Technical Document

Specifications

Brand

JST

Series

FV

Insulation

Insulated

Insulation Material

Vinyl

Inner Ring Diameter

8.4mm

Outer Ring Diameter

11.6mm

Maximum Wire Size mm²

1.65mm²

Minimum Wire Size mm²

0.25mm²

Minimum Wire Size AWG

22AWG

Maximum Wire Size AWG

16AWG

Stud Size

M8 (5/16)

Colour

Red

Thickness

0.8mm

Overall Length

25.9mm

Country of Origin

Japan

Product details

JST Insulated Crimp Ring Terminals

The JST R-Type Ring Terminal is made of oxygen free cooper and features excellent electrical characteristics. The Nylon insulation ensures high flame resistance and insulation properties.

Features & Benefits

• Flared entry
• Oxygen free cooper with excellent electrical characteristics
• High-strength brazing
• Insulation
• High temperature resistance (up to 105oC)

JST Insulated Crimp Terminals
